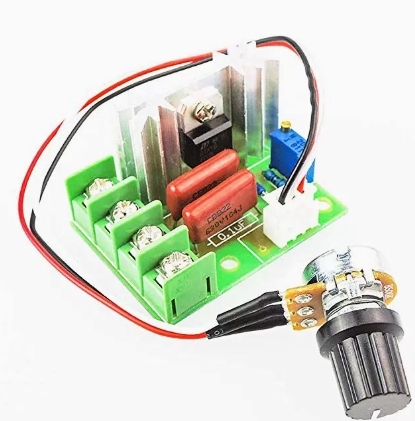

2000W thyristor speed controller motor 220V high-power voltage regulation, light regulation and temperature regulation module external potentiometer

External knob 2000W imported thyristor voltage regulator, high-power electronic speed regulator, dimming speed regulation, temperature regulation
This voltage regulator is a specially improved circuit for motor speed regulation, which can adjust the minimum output voltage through a precision multi turn potentiometer.
Parameters:
Operating voltage: AC 220V
Maximum power: 2000W, note that this is the short-term limit power. If used for a long time, the power should be reduced. It is recommended to use a room temperature resistive load within 1000W. Tin plating on the back should be increased as needed.
Voltage regulation: AC 50-220V
Specification and size: High temperature resistant FR-4 circuit board
Note that the load must be connected first before voltage regulation.
Thyristors are mainly used for resistive loads (such as electric filament incandescent lamps), and most single-phase AC motors can also be used, but it is not guaranteed that they can be used. For other types of loads, please confirm by the buyer.
Weight: 45g
Materials used for this regulator:
New controllable silicon
All of them are high-voltage capacitors,
All of them are metal film resistors
,
ST original imported trigger diode,
Precision multi turn potentiometer,
The main potentiometer is from a large factory in Taiwan,
All materials are exquisite, and they are carefully selected before being purchased in large quantities.
Comes with built-in heat sink, buyers can use it as soon as they receive it,
1.6mm thick epoxy copper-clad sheet, pursuing perfect welding craftsmanship.
Back image:
Usage:
Connect this product in series to the circuit of a desk lamp or electrical appliance (i.e. disconnect any one of the live or neutral wires of the desk lamp or electrical appliance, and connect the two wires of this product). Rotate the potentiometer knob to adjust the brightness, speed, voltage, and temperature; Using non
Often convenient.
This product is suitable for: using a new type of bidirectional high-power thyristor, as the current can reach 25 amperes, which effectively solves the overcurrent problem caused by the low resistance of the electric furnace wire during cooling; It is very convenient to adjust the output voltage of the mains power, and can be adjusted freely between 90-220 volts for power supply
Using electrical appliances. For example, adjusting the heating of electric furnaces and water heaters, adjusting the lighting of lamps, adjusting the speed of small motors, and adjusting the temperature of electric soldering irons. Thus achieving the effect of dimming, temperature regulation, and pressure regulation. Large electrical appliances with a power consumption of less than 2000 watts can be used. Due to the already high power, most household appliances or
Small factories are sufficient for use. The power of inductive or capacitive loads should be reduced. This voltage regulator is equipped with bidirectional high-power controllable silicon, and the potentiometers are all equipped with nuts, which can be used without adding any components, making it very convenient and practical.
