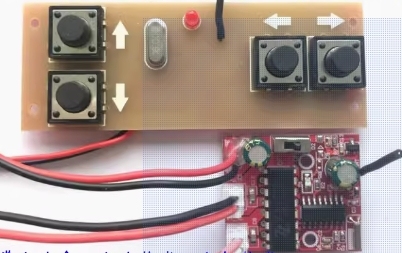

4-channel 2.4G wireless remote control receiver set, toy car model, ship model, DIY remote control accessories TR100
4-channel 2.4G wireless remote control receiver set, toy car model, ship model, DIY remote control accessories TR100
Special attention: The remote control and receiver set have been debugged by the manufacturer before shipment. Due to the special nature of the circuit board and the unstable operation of personal DIY, the receiver board does not accept returns, exchanges, or after-sales service! The receiving board does not accept returns, exchanges, or after-sales service! The receiving board does not accept returns, exchanges, or after-sales service! Those who mind, please take photos with caution. Thank you!
Manufacturer direct sales - suitable for making toy models with motors pushed on both sides and differential toys with differential turning (without servo!!)
Can be used for differential ships, vehicles, tanks, etc., very suitable for differential series DIY!!!
Suitable for: differential engineering vehicles, excavators, tanks, and remote-controlled ships for drilling and laying special boards! Suitable as a toy for differential turning with motors pushed on both sides: such as a tank excavator with two tracks on the left and right, a tracked robot, and a remote-controlled boat with two propellers on the left and right, making it a high-power long-distance toy! For those who rely on differential turning, tanks are the most familiar. Just think about how to turn and you'll understand.
I noticed that it is not suitable for ordinary toy cars: because the direction motor and driving motor of ordinary toy cars can act independently and do not rely on differential turning!!
Launch plate: 2.2V-4.5V
Receiving board: 3.6V-9V
Distance: 100 meters and the antenna does not need to be extended!!
Frequency: High frequency 2.4G, multiple sets of frequencies should be used simultaneously to avoid stable serial signals
Power: The MOSFET integrated motor driver chip on the high-power receiving board has high driving efficiency and is energy-saving, not a transistor driver!! Each circuit can withstand a maximum current of 2A without burning the board, and is generally suitable for small and medium-sized motors up to 380 models
***************************************************************************
Frequency matching (code matching) method: Press the back and right buttons of the remote control at the same time, then power on again (note: always press both buttons before powering on). At this time, the indicator light on the transmission board will flash quickly and enter frequency matching mode (if the receiver board is not powered on for 15 seconds, it will automatically exit). Then power on the receiver board, and you will see that the indicator lights on the receiver board and remote control flash slowly three times, indicating that the pairing is completed. (If multiple sets of transceivers are simultaneously matched, remember to only match one set at a time, and all others must be powered off)
Note: After successful frequency pairing, there is no need to pair again for next use. If the transmitting or receiving board is lost, it can be paired again for use. It is possible to pair multiple receivers with one remote control, thereby controlling multiple receivers.
