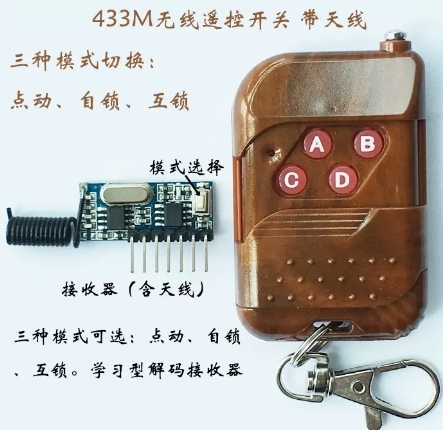

433MHz wireless remote control switch with remote control transmitter and receiver, remote control motor with antenna 433M

Supporting motor drive link:
Product features
1. The remote control adopts a learning EV1527 encoding method, and each remote control has an independent address code to prevent serial codes and mutual interference.
2. The receiving module has three functional options: jog, self-locking, and interlock.
3. The receiving module adopts button selection mode. There is no need to manually select modes such as welding or jumper, saving time and labor costs.
4. The receiving module includes decoding chips that can support encoding chips such as EV1527 and PT2262.
Product parameters
Working voltage: DC2.5V-5V
Working current: 3mA
Sensitivity: -108DBM
Speed: MAX 10 KB/S
Working modes: jog, self-locking, interlock
Module output: 4 CMOS level signals, corresponding to 4 buttons on the remote control "ABCD"
The receiving module can store 20 remote controls
Support for encoding chip models: EV1527, PT2262, and other customization
Weight: 26g
Remote control distance: 50 meters (if it is a remote control motor, the distance may be halved due to motor interference)
Wiring instructions
The default mode for remote control shipment is jog mode. If you need to change the mode or multiple remote controls controlling one receiver at the same time, or one remote control controlling multiple receivers, please follow the following steps:
Clear coding——
Press the learn code button on the receiver 8 times, and the LED will turn off. LED flashes 8 times, clear OK. (If the same remote control needs to change its working mode, please clear the code first before learning)
Learning pairing codes——
Step 1:
Press the learning button on the receiving board according to the required number of times to select the working mode, and then the LED light on the receiving board will remain on.
Jogging mode: Press the decoding module learning button once.
Self locking mode: Press the decoding module learning button twice.
Interlocking mode: Press the decoding module learning button three times.
Step 2: Press any button on the remote control, and after receiving the signal, the LED light on the receiving board will flash three times and then turn off, indicating successful code matching. (If there is no remote control signal after entering the learning pairing mode, it will automatically exit the learning pairing mode after 10 seconds.)
Note: If a mode has already been selected after clearing the code, selecting another mode in the first step is invalid, and you must clear the code again before learning!!!
If you want multiple remote controls to control a receiver at the same time, after entering the learning mode, press the learning button once and the LED will stay on, then press any button on the remote control again.
Introduction to working mode:
1. Jogging: Press the remote control, and the decoding module will instantly output a high-level signal to the corresponding channel. If the button is continuously pressed, there will be a high-level output. Release the button and it will become a low-level signal.
2. Self locking: Press the remote control once, and the decoding module will maintain the output level signal of the corresponding channel. Press the remote control again, and the decoding module will stop outputting the high-level signal, that is, press the button once to change the state.
3. Interlocking: Press the remote control, the decoding module continuously outputs a high-level signal to the corresponding channel, and forces other channels to output a low-level signal. (For example: Press button A on the remote control, pin D0 of the decoding module outputs a high-level signal, and the other three channels output a low-level signal; press button B, pin D1 of the decoding module outputs a high-level signal, and the other three channels output a low-level signal.)
