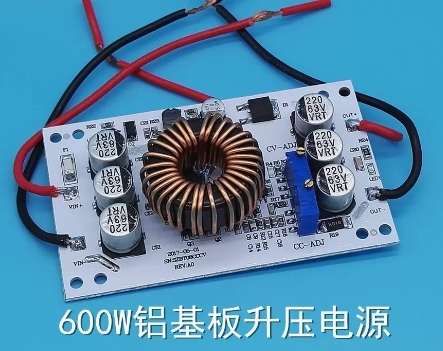

600W aluminum substrate boost constant voltage constant current adjustable power module LED boost drive boost charging power supply
【 Module Name 】 600W Boost Constant Current Module
【 Module Nature 】: Non isolated Booster Module (BOOST)
Input voltage: DC10V-60V
[Input current]: 10 (MAX)
[Static working current]: 10mA (When 12V rises to 20V, the higher the output voltage, the higher the static current will increase)
[Output voltage]: 12-60V continuously adjustable (default output is 19V for shipment. If you need other voltages, please explain to the shopkeeper.)
【 Output Current 】: 10A MAX exceeds 6A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)
Constant current range: 0.2-10A
[Output Power]:=Input Voltage * 10A, for example: Input 12V * 10A=120W, Input 24V * 10A=240W,
Input 36V * 10A=1360W, input 60V * 10A=600W,
[Working temperature]: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
[Working frequency]: 150KHz
Conversion efficiency: 92% -96% (efficiency is related to input and output voltage, current, and voltage difference)
[Input protection]: None (note not to the positive and negative connections)
[Installation method]: 4 3mm screw holes
[Wiring Method]: Wiring Output
Module size: 85mm in length, 52mm in width, and 21mm in height
Module weight: 80g
