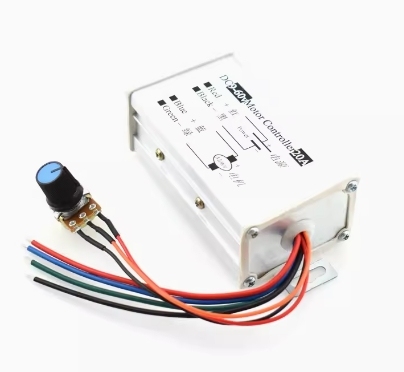

9V12V24V36V48V60V PWM DC Motor Governor 20A Motor Controller Metal Housing
Product parameters
Input voltage: DC9-60V Output voltage: Linear under load
Output current: 0-20A (within 10A after long-term use, pay attention to maintaining smooth heat dissipation conditions of the module)
Ultimate power: 1200W
Speed regulation type: PWM regulation speed regulation method: potentiometer (linear)
Speed range: 0-100% Control frequency: 25KHZ
Module size: 92MM * 52MM * 36MM Product net weight: 130g
According to installation size: the center distance of the fixing hole on the back is 104MM
Potentiometer mounting hole: 7MM
Special reminder:
Connect the DC motor speed regulator to the DC power supply,
Never directly connect to household 220V AC power,
Otherwise, the consequences of damage will be borne by oneself!
Note that this is not a power module and the motor must be connected to adjust the speed. If the motor is not connected, the output of the multimeter will not change.
The motor can be connected without distinguishing between positive and negative. When the running direction does not match the expected direction, the direction can be changed by adjusting the wire sequence.
Please note:
1. This speed controller is used for DC brushless motors.
2. Not suitable for speed regulation of DC brushless motors; It cannot be used as a voltage regulator or regulator!
