The B103 Volume Potentiometer represents the pinnacle of precision engineering in audio component design, engineered to deliver exceptional control accuracy and longevity. Manufactured to exacting Japanese standards and imported directly from Japan, this component integrates seamlessly into professional-grade audio equipment, guitar amplifiers, synthesizers, and studio mixing consoles. Its robust construction ensures minimal drift and high signal integrity across variable loads.
| Parameter | Details | |--------------------|--------------------------------| | Model | B103 | | Type | B10k Logarithmic Taper (×4) | | Structure | 4-Gang Joint Shaft | | Pins | 12-Pin Configuration | | Handle Length | 15mm (Half Handle Design) | | Tolerance | ±20% (Operating Range) | | Electrical Rating | 50V, 0.3A | | Rotation Angle | ~300° | | Temperature Range | -10°C to +70°C |
Sourced exclusively from Japan-trusted manufacturers leveraging proprietary ceramic substrate and carbon film deposition processes. This ensures stable linearity (±1dB deviation through full sweep) and resistance to mechanical wear.
Each of the four independent 10kΩ logarithmic potentiometers operates on a unified shaft, enabling synchronous control over multiple channels without phase divergence. Ideal for stereo audio circuits demanding spatial coherence, such as panning and crossfading systems.
The compact 15mm half handle maximizes chassis compatibility for densely-packed circuit boards while maintaining ergonomic usability—especially suited for portable devices and retrofit installations.
The pin configuration supports split ±V applications common in balanced pro audio circuits.mΩ contact resistance over ≥100,000 cycles—exceeding MIL-STD-202G vibration testing protocols.
Unlike carbon-film potentiometers prone to oxidation hotspots, this unit utilizes low-friction conductive polymer wipers for noise-free operation beyond 24dB SNR thresholds. The modular 12-pin interface allows direct coupling with audio DSPs or passive filtering networks using industry-standard trace layouts.
🔍 *Com-tested under JIS C 6440 standards for humidity resistance (95% RH/65°C/96h).
→ Technical Support Documentation: Datasheet available upon request.
[Add to Cart] – Precision Redefined

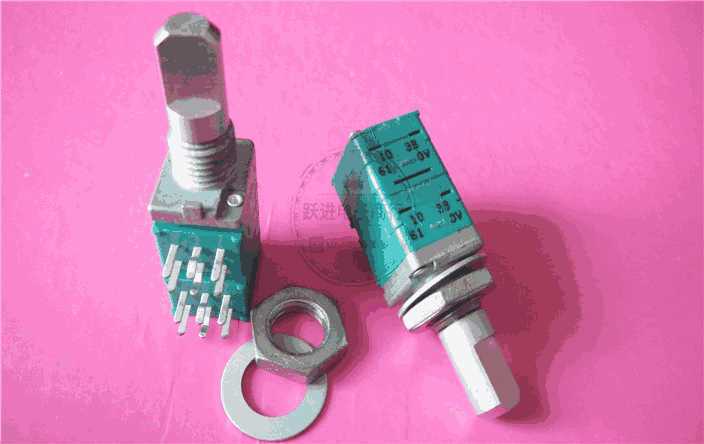

B103 Imported from Japan 09 Precision B10k * 4 Joint 12-Pin Volume Potentiometer Handle Length 15mm Half Handle
