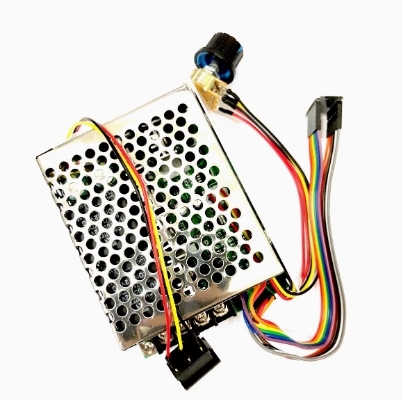

Bidirectional forward and DC motor speed controller with digital display scale tachometer 40A 12V24V36
Bidirectional forward and DC motor speed controller with digital display scale tachometer 40A 12V24V36
Equipped with forward and switches, the potentiometer knob has a switch and can be controlled by PLC for forward and rotation. The forward and switches can be replaced with jog switches.
The display tube and module are connected through ribbon cables. During express transportation, the ribbon cables may become loose and fall off. Buyers need to tighten and secure them themselves. If you mind, do not take photos.
Positioning with 0-100 percentage digital scale
Technical indicators:
Input voltage: DC10-55V (equal to the rated voltage of the motor) Output voltage: Linear under load
Maximum current: 60A Continuous current: 40A (Pay attention to heat dissipation or reduce current when using for a long time)
Speed regulation type: current regulation speed regulation method: potentiometer (linear)
Supported motor: DC brushless motor forward androtation: Supported
Speed range: 0-100% Control frequency: 15KHZ
Wiring type: Terminal knob specification: 100K (with switch)
Wiring type: fence type wiring terminal product net weight: 249 grams
Main board size: 100MM * 76MM * 28MM Shell size: 110 * 78 * 38MM
Attention: The digital display shows the percentage of motor full speed from 0 to 100, which is not the actual motor speed
The input voltage must be divided into positive and negative
The input voltage should be equal to the rated voltage of the motor within 10-55V DC
Before powering on, ensure that the positive and negative connections are correct, and do not touch the heat sink when wiring, as it may burn the circuit board. Note that this is not a power module, and the motor must be connected to adjust the speed. If the motor is not connected, the output of the multimeter will not change, and AC power cannot be connected. Used for brush motors.
