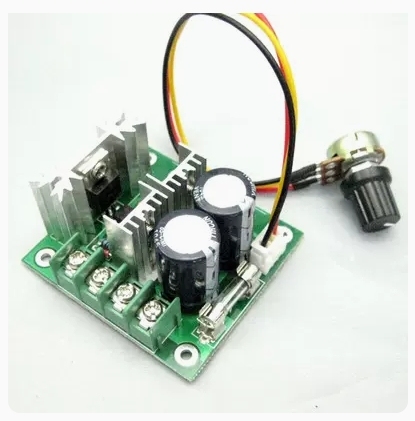

DC motor speed controller
This speed controller can control the speed of the motor to change infinitely from 10% to 100%, with advanced technology, high efficiency, large torque, and low heat generation. It has been modified multiple times and has been widely and stably applied in industrial production
Technical indicators:
1) Input voltage: DC12-40V
2) Control power: 0.01-400W
3) Applicable current: rated current 8A, maximum current 10A,
Static current of 0.02A, within 5A after long-term use.
4) PWM frequency: 13kHz
5) PWM duty cycle: 10% -100% (key parameters please pay attention!)
Size: 60mm * 55mm * 28mm
