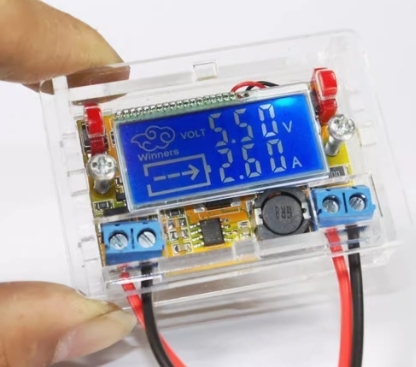

DC-DC adjustable voltage reducing and stabilizing power supply module with display LCD screen and dual display of voltmeter and ammeter
DC-DC adjustable voltage reducing and stabilizing power supply module with display LCD screen and dual display of voltmeter and ammeter
Module performance and characteristics:
Equipped with wiring terminals and convenient to use without soldering iron
Input voltage: 5-23V, maximum 23V, recommended for use within 20V, input anti connection. (The input voltage must be at least 1V higher than the output voltage)
● Adjustable output voltage range: 0V~16.5V, continuously adjustable, automatically saving the last set voltage.
The peak current is 3A, and it is recommended to use within 2A. Accuracy of 1%, minimum display of 0.01, unit of A, excessive heat generation beyond 2A, please find a solution to the heat dissipation problem on your own.
● High conversion efficiency, up to 95% (efficiency is related to input and output voltage, current, and voltage difference)
Load adjustment rate S (I) ≤ 0.8%, voltage adjustment rate S (u) ≤ 0.8%
Size 62mm * 44mm * 18mm
Weight 45g
Shipping: The module is a finished product with a loose outer shell that has been tested (not a professional enthusiast, please be careful when taking photos, any incorrect wiring or modifications are not covered by warranty)
