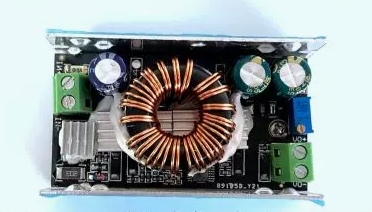

DC-DC high-voltage step-down 90V72V6036V adjustable step-down power supply module for electric vehicle on-board step-down power supply
Introduction to Synchronous Rectification Technology:
Synchronous rectification is a new technology that uses dedicated power MOSFETs with extremely low on state resistance to replace rectifier diodes and reduce rectification losses. It can greatly improve the efficiency of DC/DC converters and there is no dead zone voltage caused by barrier voltage. Power MOSFETs belong to voltage controlled devices, and their volt ampere characteristics exhibit a linear relationship during conduction. When using power MOSFETs as rectifiers, it is required that the gate voltage must be synchronized with the phase of the rectified voltage in order to complete the rectification function, hence it is called synchronous rectification. Synchronous rectification technology greatly reduces the rectification loss at the output end of switch mode power supplies, thereby improving conversion efficiency and reducing the heating of the power supply itself.
Module parameters
Module nature: Synchronous rectification non isolated step-down module
Input voltage: 10-90VDC
Output voltage: 1.5-60VDC (suitable for applications where the input voltage is higher than the output voltage and cannot be boosted)
Output current: Maximum 6A (please reduce the rating for high voltage output, and additional heat dissipation is required if the module temperature exceeds 65 degrees)
Maximum power: 100W (maximum current at low voltage output is 6A. maximum power at high voltage output is 100W)
Working frequency: 180KHZ
Conversion efficiency: 97.5% (typical value)
Input anti connection: Yes
Aluminum shell size: 70MM * 38MM * 31MM
Weight: approximately 70g
