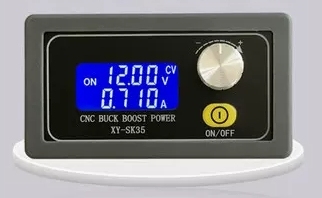

Product highlights:
1. CNC adjustable voltage and current, convenient and fast, industrial quality, high precision, can be directly used in engineering projects;
2. Adopting professional power LCD, with a clear interface, minimalist operation, and almost complete protection mechanism;
3. Hardware protection: Input end anti connection protection, connection does not burn; Short circuit protection at the output end, short-circuit without burning; Output end anti backflow, no need to add an anti backflow diode when charging the battery;
4. Software protection: Over voltage protection (OTP), Over current protection (OCP), Over power protection (OPP), Over temperature protection (OTP), Input Under voltage protection (LVP);
5. Default adjustable voltage or constant current value can be set, which can be quickly adjusted in various applications;
6. Voltage and current can be locked to prevent misoperation!
7. It has abundant materials, stable performance, and a wide range of uses.
1. Product parameters:
Input voltage: DC5.0V-30V (there is undervoltage protection LVP below 4.7V, it is recommended to use an input voltage higher than 7V. When the input voltage is lower than 7V, the output power will decrease, and the lower the input voltage, the smaller the output power)
Output voltage: DC0.6V-30V
Output current: 0-4.0A
Output power: 35W under natural heat dissipation, up to 50W with air cooling
Voltage accuracy: ± 0.5%+1 words, resolution: 0.01V, factory calibrated accuracy
Current accuracy: ± 0.8%+3 words, resolution: 0.001A, factory calibrated accuracy
Conversion efficiency: around 88%
Soft start: Yes
Input protection: Yes, connection does not burn
Output end anti backflow: Yes, can be directly connected to the battery
Output short circuit protection: Yes, the output terminal can be directly short circuited
Temperature protection (OTP): Yes, 100 ℃
Working frequency: 180KHZ
