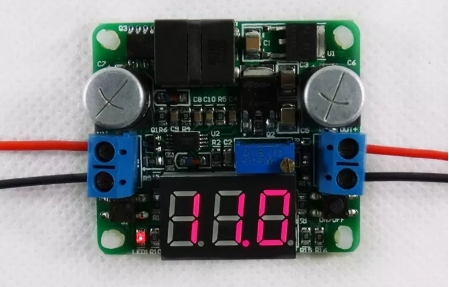

Digital display voltage regulator power module with digital tube exceeding LM2577 LM2596 IN (5-25V)
Integrated voltmeter and MOS transistor protection circuit, 25W high-power wide voltage rise and fall module, with performance far superior to LM2596 and LM2577. The output voltage can be higher or lower than the input voltage for more flexible use.
Adjustable version indicators:
Weight: 23g
Appearance dimensions: 47 * 41 * 16mm (length * width * height)
Input voltage range: 5.0-25V
Output voltage range: 0.5V-25V
Continuous output current: 2A (max)
Continuous input current: 2A (max)
Input/output power: 25W (max)
Input/output current: Calculate the input/output current under rated conditions based on power conservation (Uin * Iin * efficiency=Uout * Iout)
