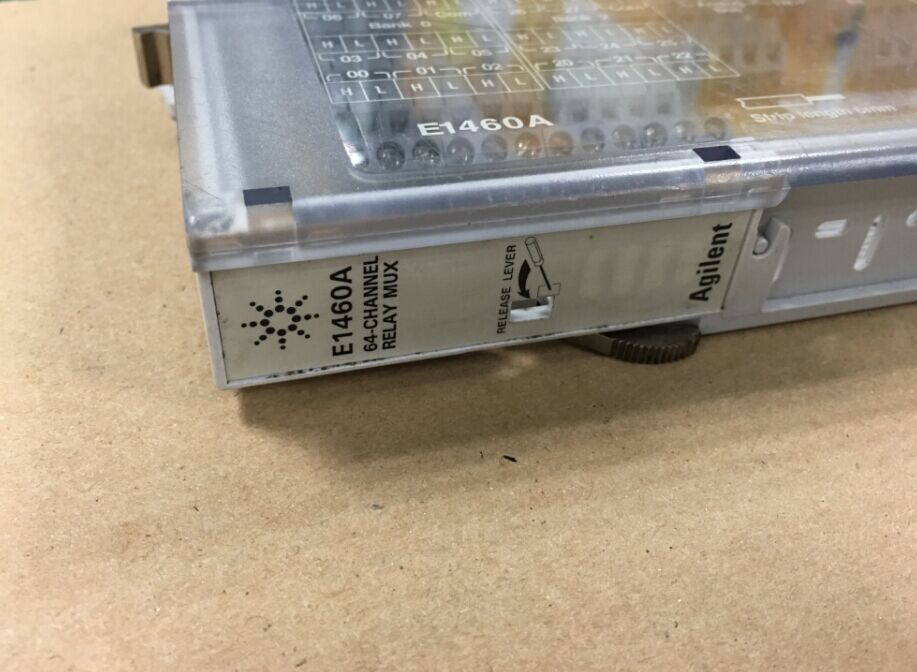

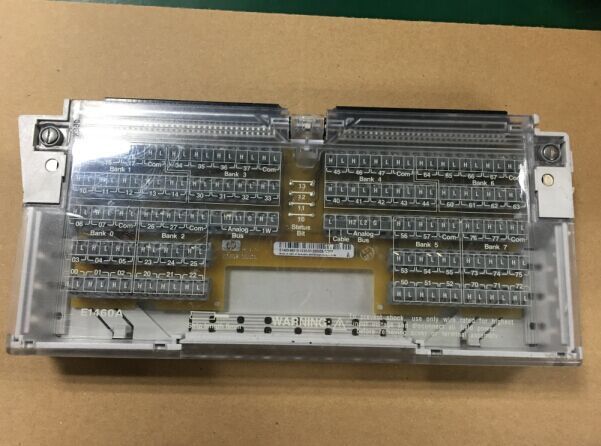

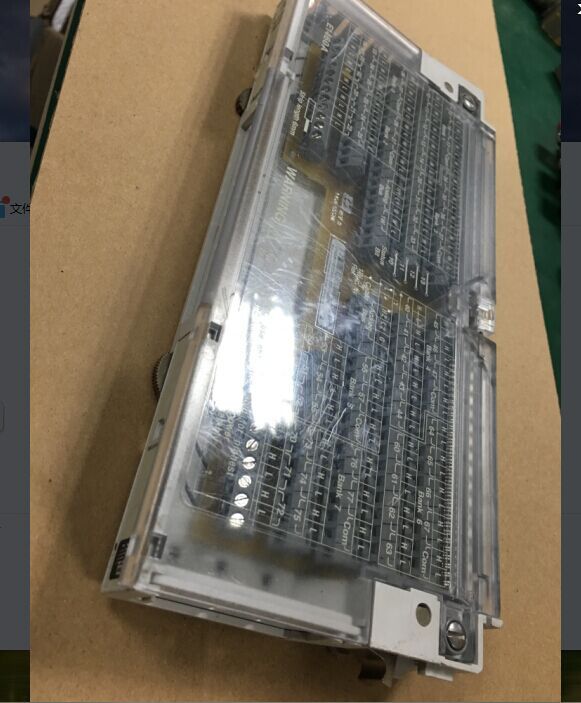

E1460A Keysight high density relay multiplexer is C type, 1 slot, use the register of the VXI module. The 64 channel multiplexer uses a closed armature switch to provide a high - point switching topology that can be configured flexibly. The switching topology consists of 64 double line, three 32 wire, four 32 wire or 128 single ended relay channel. The multiplexer is composed of a component card equipped with a switch (E1460-66202) and a QUIC screw terminal (E1460-80011) inserted on the component card.
Use the SCPI command or terminal card status bits E1460A "jumper line mode" configuration is 128 x 1 lines, 64 lines, 32 x 2 x 3 x 4 line or 32 line multiplexer.
E1460A applications include wire harness and cable testing, semiconductor testing, and printed circuit board testing.
