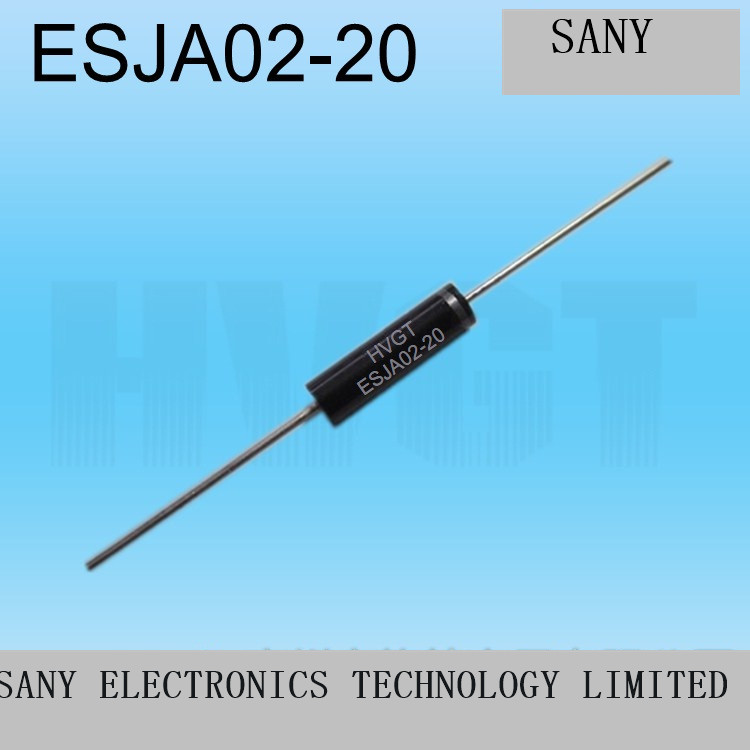

[electronic] ESJA02-20 high voltage high voltage diode GERT 20mA 20kV instead of JB99

16679225148
[electronic] ESJA02-20 high voltage high voltage diode GERT 20mA 20kV instead of JB99
Quantity:
-
+
(46785 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(110)
Specifications
brand HVGT

Device profile

[device name]

High voltage diode

[production brand]

HVGT

[device model]

ESJA02-20

[green note]

RoHS

[device package]

DO-415

[sales note]

Original authentic, brand marketing.

Electrical characteristics

Project

Condition

Symbol

Data

Company

Reverse repetitive peak voltage



VRRM

Twenty

KV

Positive average current

25 degrees C

IF (AV)

20

MA

Positive non repetitive surge current

Sine 1/2 (60Hz) 25 degrees C (8.3mS)

IFSM

1.5

A

Positive peak voltage

VFIF

VFM

40

V

Reverse direct current

IRVRRM25 ~ C

IR1

3

UA

Reverse direct current

IRVRRM100 degree C

IR2

30

UA

Reverse recovery time

IF=0.5IRI.RI.RR=0.25IR

TRR

100

NS

P/N junction capacitance

At 1 V, MHzR= 0 T andA= 25 degrees C

CJ

1.0

PF

Operating temperature range



TJ

-40~125

C

Storage temperature range



TSTG

-40~125

C

1 shop is HVGT brand high-voltage rectifier devices outlets, sales of products are original authentic, please customers and friends carefully select the type you need or device parameters, so as not to cause inconvenience.

Please carefully check the products received after 2 customers, not on the machine before we detect the product quality problems - return or replacement and bear the return shipping costs, for the customer on the product consultation with our customer service we ask after the quality problems, but I do not bear all the losses and joint liability.

3 our default mode of transport is Yuantong express, if customers need emergency optional SF express, the need to fill the transportation price, can also choose to pay SF, please contact our customer service.

4 we can provide ordinary commercial invoice for customers, if you need invoice please inform our customer service in the "message to the seller" fill in the invoice unit name, if there is no default message we issue payment receipt; we can also provide 17% customers Friend VAT invoice, please contact our customer service.

5 we treat every customer as a friend, after the receipt of the goods does not have what problem please give us praise plus 5 star that support us to do better; what problems can we communicate and negotiate, we will try to make you satisfied.

Sincerely welcome your presence!



Guangzhou great Electronics Co. Ltd is established in the HVGT brand sales China enterprise, HVGT has been in China trademark trademark Office trademark registration certificate.

Sales company specializing in the production of series of high-quality plastic high voltage diode, high-voltage silicon stack high voltage rectifier device. Suitable for microwave oven, doubling circuit, medical -, laser power, negative ion and ozone generator, electronic disinfection, electrostatic flocking, electrostatic spraying, high voltage generator etc..

The company has an efficient management team, advanced production -, accurate high pressure testing -, convenient online sales services to provide customers with high quality and high voltage diodes, high voltage silicon stack, high voltage rectifier devices. The accumulated experience and 10 years in the field of high integrity marketing achievement Gutt people get the trust of our customers and support the industry, good atmosphere. Gutt people insist on adhering to the professional and efficient, honest hospitality, business philosophy and various vendors enthusiastic service.
