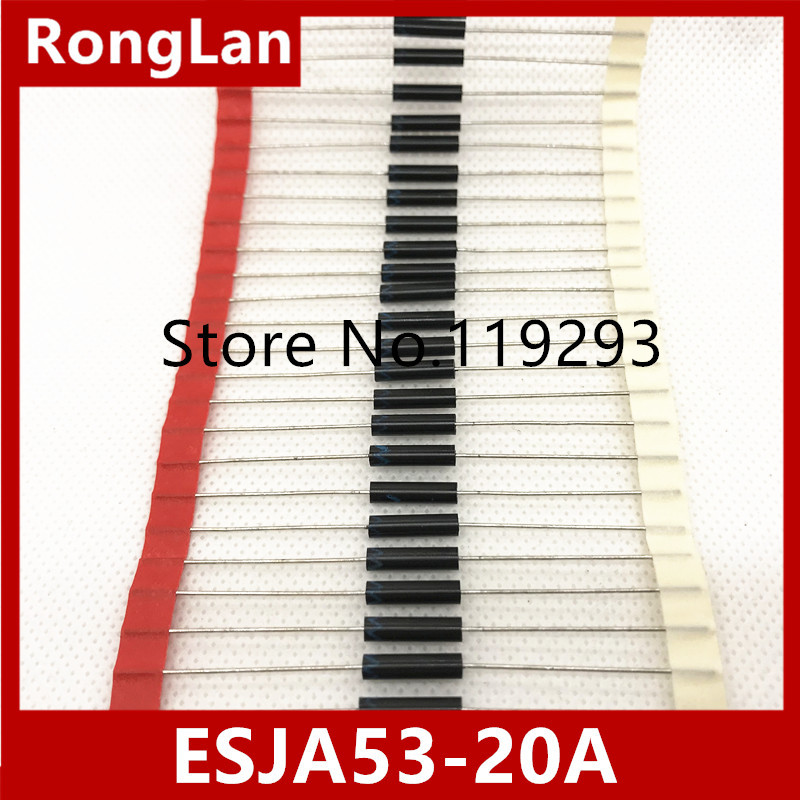

![[electronic] ESJA53-20A ESJA53-16A ESJA53-18A high voltage high voltage diode Gutt Fuji high voltage diode 5MA 18KV](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1903/products/28/9677fe76b6.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
| brand | FUJI/ Fujitsu |
|---|
|
ESJA53-20A parameter table Datasheet: |
|||
|
Model Type |
ESJA53-20A |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
20kV |
Forward average cuRRent IF(AV) |
5.0mA |
|
Forward non repetitive surge current IFSM |
0.5A |
Positive peak voltage IF=10 (mA) VFM |
55V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
2uA |
Reverse recovery time Trr |
80nS |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
5uA |
PN Junction capacitance CJ |
1.0pF |
|
Working temperature Tj |
-40~120C |
Storage temperature TSTG |
-40~120 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
