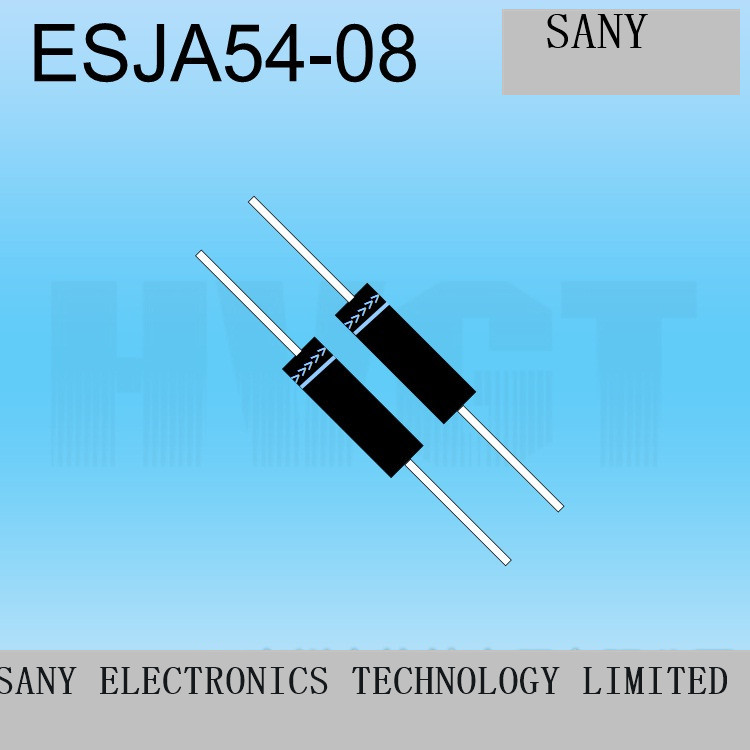

ESJA54-08AParameter table Datasheet: |
|||
Model Type |
Manufacturer Manufacturer |
||
Reverse repetitive peak voltage VRRM |
Forward average cuRRent IF(AV) |
||
Forward non repetitive surge current IFSM |
0.5A |
Positive peak voltage IF=10 (mA) VFM |
30V |
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
2uA |
Reverse recovery time Trr |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
5uA |
PN Junction capacitance CJ |
2.0pF |
Working temperature Tj |
-40~125C |
Storage temperature TSTG |
-40~125 C |
Outline dimension Size: Shape (mm Unit:) |
|||
