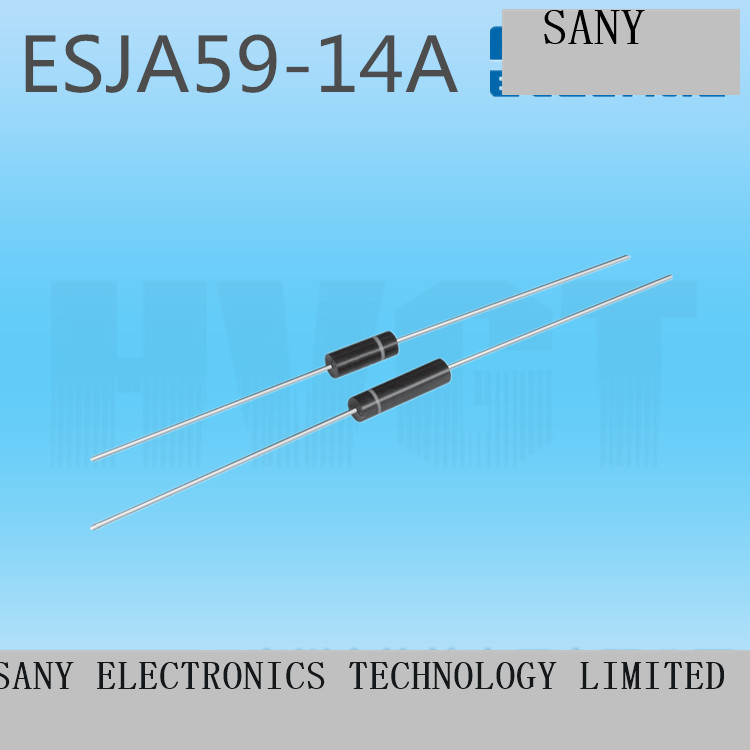

![[electronic] ESJA59-14A high voltage high voltage diode Gutt Fuji high voltage diode](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1610/products/18/cc72d18b55.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
| brand | FUJI/ Fujitsu |
|---|
| 0 | |||
| Material Science： | Silicon (Si) | Whether to import: | yes |
| Pin count: | 2 | Positive average cuRRent, IF: | 5mA |
| Reverse surge voltage, Vrrm: | 14KV | Model： | ESJA59-14A |
| Product type: | Rectifier stack | Brand: | FUJI/ FuJitsu |
| Package: | DO |
|
ESJA59-14A parameter table Datasheet: |
|||||||||||||
|
Model Type |
ESJA59-14A |
Manufacturer Manufacturer |
FUJI |
||||||||||
|
Reverse repetitive peak voltage VRRM |
14kV |
Positive average currentIF (AV) |
|||||||||||
|
Forward non repetitive surge current IFSM |
0.5A |
Positive peak voltage IF=10 (mA) VFM |
51V |
||||||||||
|
Reverse direct current VR=VRRM(kV) IRTa=25 C |
2 A |
Reverse recovery time Trr |
80nS |
||||||||||
|
Reverse direct current VR=VRRM(kV) IRToil=100 C |
5 A |
PN Junction capacitance Cj |
1.0pF |
||||||||||
|
Working temperature Tj |
-40 ~ +120 |
Storage temperature TSTG |
-40 ~ +120 |
||||||||||
|
Outline dimension Size: Shape (mm Unit:) |
|||||||||||||
|
|
|
||||||||||||
