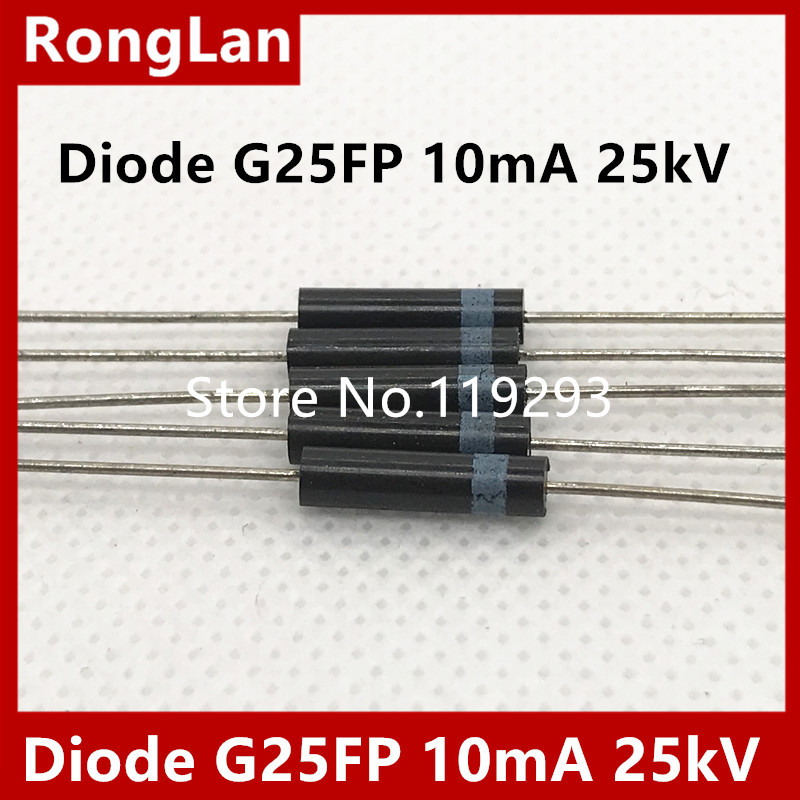

![[electronic] high voltage high voltage diode G25FP GERT G25FP 10mA 25kV high voltage silicon stack](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1903/products/28/341950cbc1.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
| brand | HVGT |
|---|
|
G25FPParameter table Datasheet: |
|||
|
Model Type |
Manufacturer Manufacturer |
||
|
Reverse repetitive peak voltage VRRM |
Forward average cuRRent IF(AV) |
||
|
Forward non repetitive surge current IFSM |
0.8A |
Positive peak voltage IF=10 (mA) VFM |
55V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
2uA |
Reverse recovery time Trr |
100nS |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
5uA |
PN Junction capacitance CJ |
- |
|
Working temperature Tj |
-40~125C |
Storage temperature TSTG |
-40~125 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
