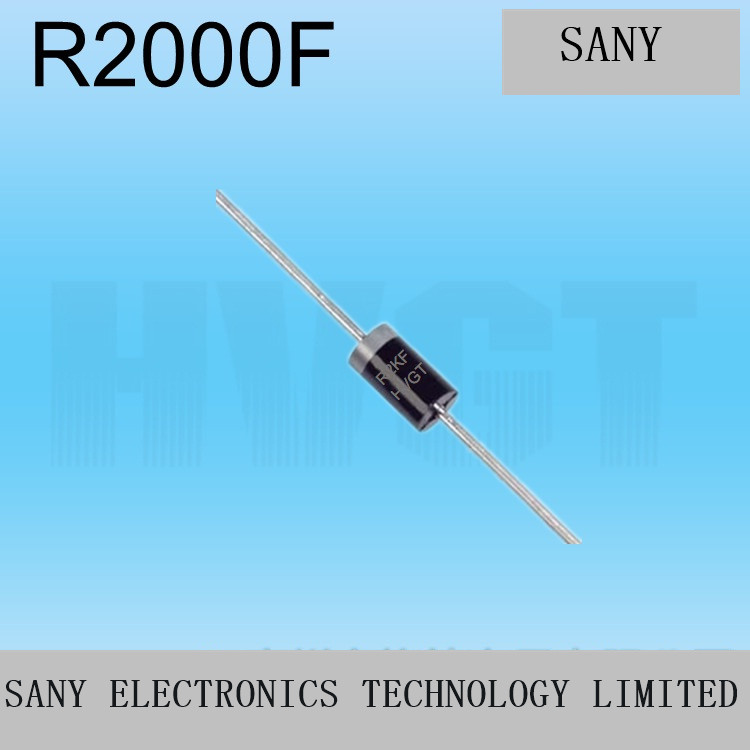

![[electronic] high voltage high voltage diode R2000F GERT R2KF 30mA 8kV high voltage silicon stack](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1610/products/18/2437de8d51.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
| brand | HVGT |
|---|
|
R2000F parameter table Datasheet: |
|||
|
Model Type |
R2000F |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
2.0KV |
Forward average cuRRent IF(AV) |
200mA |
|
Forward non repetitive surge current IFSM |
30A |
Positive peak voltage IF=10 (mA) VFM |
2.0V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
5.0uA |
Reverse recovery time Trr |
500nS |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
100uA |
PN Junction capacitance CJ |
6.0pF |
|
Working temperature Tj |
-65~175C |
Storage temperature TSTG |
-65~175 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
