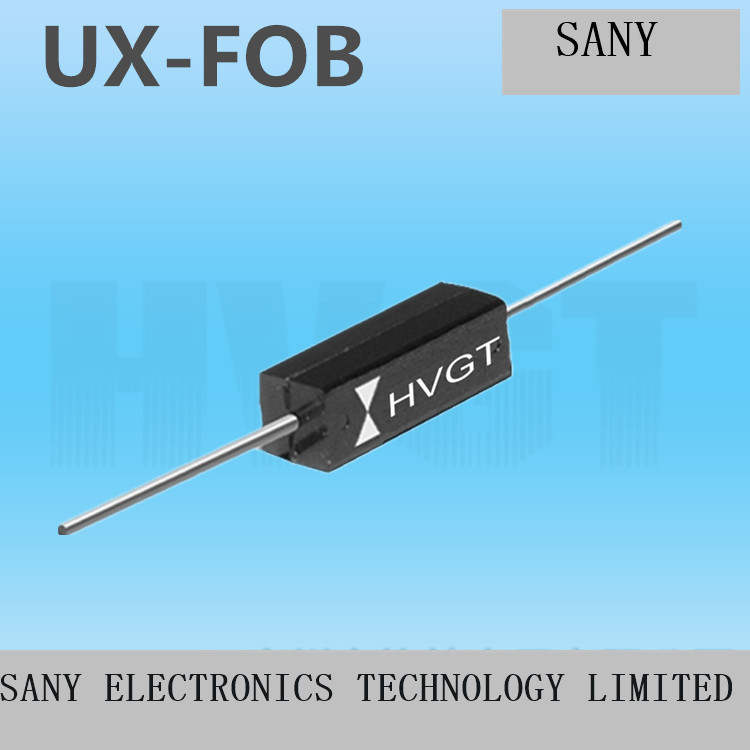

![[electronic] high voltage high voltage diode UX-FOB GERT 500mA 8kV 40nS high voltage silicon stack](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1610/products/18/c7c732456c.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
| brand | HVCA |
|---|
|
UX-FOBParameter table Datasheet: |
|||
|
Model Type |
Manufacturer Manufacturer |
||
|
Reverse repetitive peak voltage VRRM |
Forward average cuRRent IF(AV) |
||
|
Forward non repetitive surge current IFSM |
20A |
Positive peak voltage IF=10 (mA) VFM |
12V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
0.5uA |
Reverse recovery time Trr |
40nS |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
5.0uA |
PN Junction capacitance CJ |
- |
|
Working temperature Tj |
-40~155C |
Storage temperature TSTG |
-40~155 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
