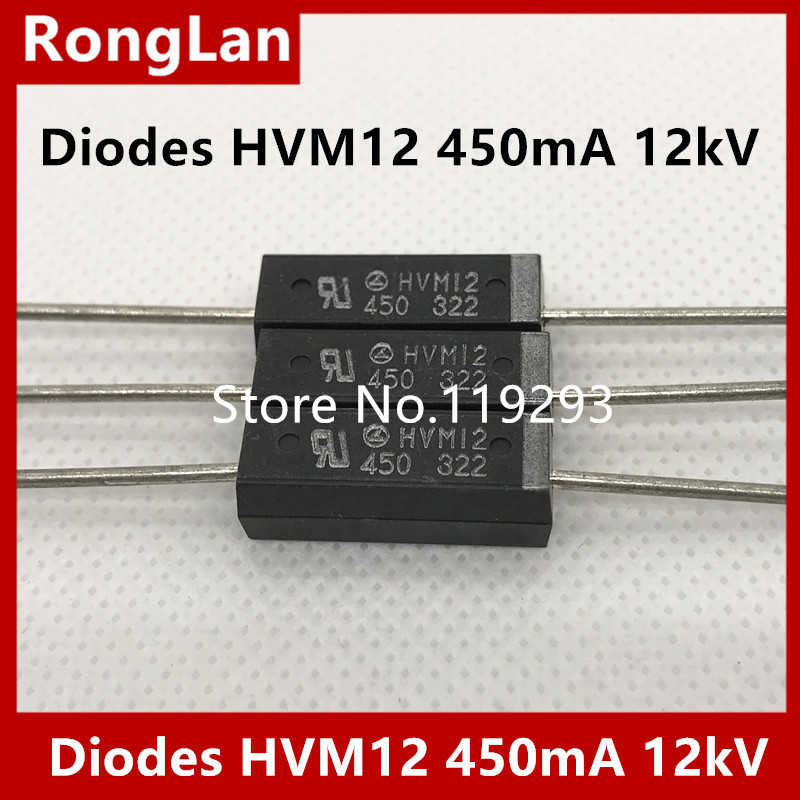

![[electronic] HVM12 high voltage HVM12 450mA 350MA 12kV diode Gutt high-voltage silicon stack 12kV frequency 450mA](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1904/products/04/4d99b363bf.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
| brand | LRC/ Leshan wireless |
|---|
| 0 | |||
| Material Science: | Silicon (Si) | Whether to import: | no |
| Pin count: | 2 | Positive average current, IF: | 450mA |
| Reverse surge voltage, Vrrm: | 12kV | Model: | HVM12 |
| Product type: | Rectifier stack | Brand: | LRC/ Leshan wireless |
| Package: | HVM | Frequency: | power frequency |
|
HVMSeries high voltage diodes are mainly used forMicrowave oven, laser, voltage multiplier circuit, microwave power supply, etc.. |
|||
|
UX-FOBParameter tableDatasheet： |
|||
|
ModelType |
HVM12 |
ManufacturerManufacturer |
LRC company |
|
Reverse repetitive peak voltageVRRM |
12kV |
Positive average currentIF (AV) |
450mA |
|
Positive non repetitive surge currentIFSM |
30A |
Positive peak voltageIF=10 (mA) VFM |
12V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25C |
10 A |
Reverse recovery timeTrr |
- |
|
Reverse direct currentVR=VRRM(kV) IRToil=100C |
500 A |
PNJunction capacitanceCj |
- |
|
working temperatureTj |
-40~+125C |
Storage temperatureTstg |
-40~+125C |
|
Outline dimensionSize Shape：(mm Unit:) |
|||
 |
|||
