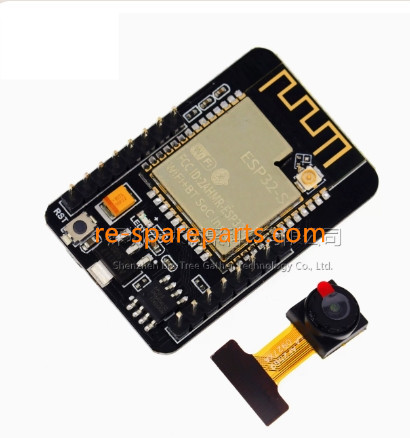

ESP32 CAM development board with OV2640 module, WIFI+Bluetooth module
DESCRIPTION
The ESP32CAM is a tiny module based on ESP32 chip and OV2640. You can even program the ESP32CAM through the ESP-IDF by installing the ESP32 Core.
The ESP32CAM equips the ESP32 with everything necessary to program, run and develop on the wonderchip. It also features a LiPo charger (IP5306) , so your ESP32CAM project can be battery-powered and truly wireless. Additionally, the board reserved the MPU6050,BME280 and an MIC.
FEATURES
l ESP32 specifications
¡ Dual-core Tensilica LX6 microprocessor
¡ Up to 240MHz clock frequency
¡ 520kB internal SRAM
¡ 4MB Flash memory
¡ Integrated 802.11 BGN WiFi transceiver
¡ Integrated dual-mode (classic and BLE)
¡ Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
l CP2104 USB TTL
l OV2640 sensor
¡ Output Formats(8-bit):
n YUV(422/420)/YCbCr422
n RGB565/555
n 8-bit compressed data
n 8-/10-bit Raw RGB data
¡ Maximum Image Transfer Rate
n UXGA/SXGA: 15fps
n SVGA: 30fps
n CIF: 60fps
¡ Scan Mode: Progressive
l Camera specifications
¡ CCD size : 1/4inch
¡ Field of View : 78 degree
¡ Maxmium Pixel: 200W
l Sensor best resolution: 1600 * 1200
l Dimension: 25mm x 24mm
l Weight: 5g
