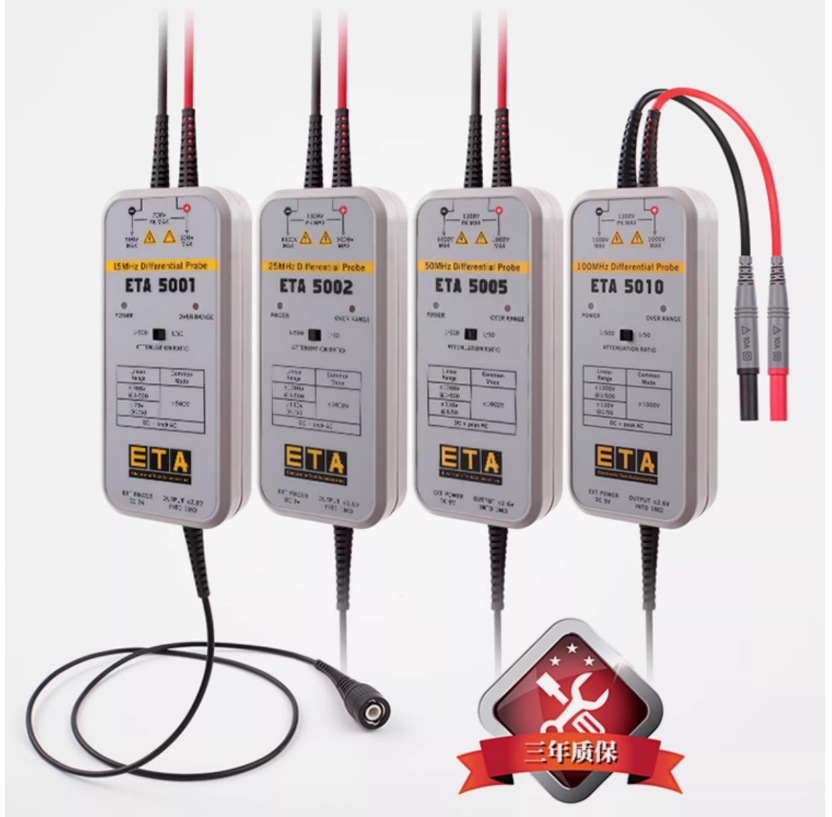

ETA Series Oscilloscope Probe Set delivers laboratory-grade performance in a comprehensive 6-piece configuration. Engineered for accuracy and safety in high-voltage environments, this collection features four specialized probes—ETA5010, ETA5001, ETA5002, and ETA5005—designed to address complex measurement challenges across power electronics, automotive systems, and industrial controls.
The ETA5010's 100MHz bandwidth (±1dB flatness) ensures minimal signal distortion during high-speed switching measurements. Its 1300V voltage capability accommodates rigorous applications like:
Isolation probes (ETA5002) provide 1kV+ galvanic isolation, eliminating ground loop risks and both operators and equipment during floating measurements.
Differential probes achieve >60dB CMRR at 1MHz, enabling accurate readings in high-noise industrial environments with common-mode interference.
All probes feature:
| Probe Model | Primary Use Case | Critical Specification ----|
| ETA5010 | High-voltage power electronics | 100MHz BW / 1300V rating |
| ETA5001 | Automotive ECU signal analysis | 50MHz BW / 200V/µs slew rate |
| ETA5002 | Isolated motor phase measurements | 1kV isolation / 25MHz BW |
| ETA5005 | General-purpose board-level diagnostics | 70MHz BW / ±0.5% linearity |

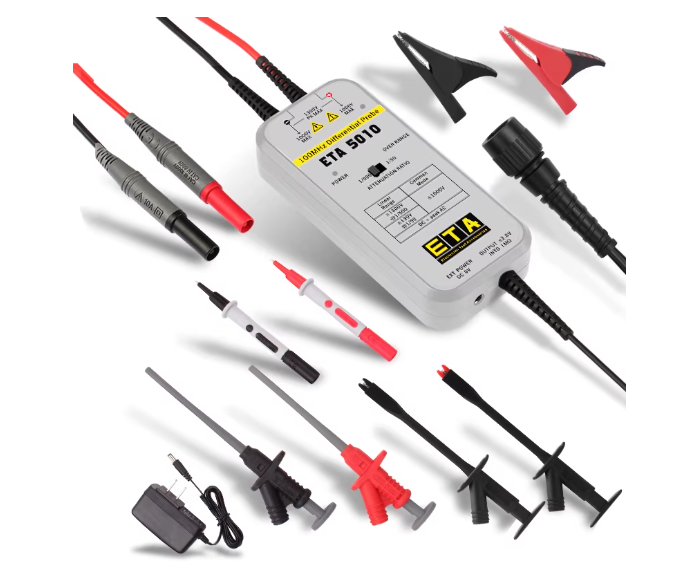

This 6-piece kit eliminates the need for multiple probe purchases by providing:

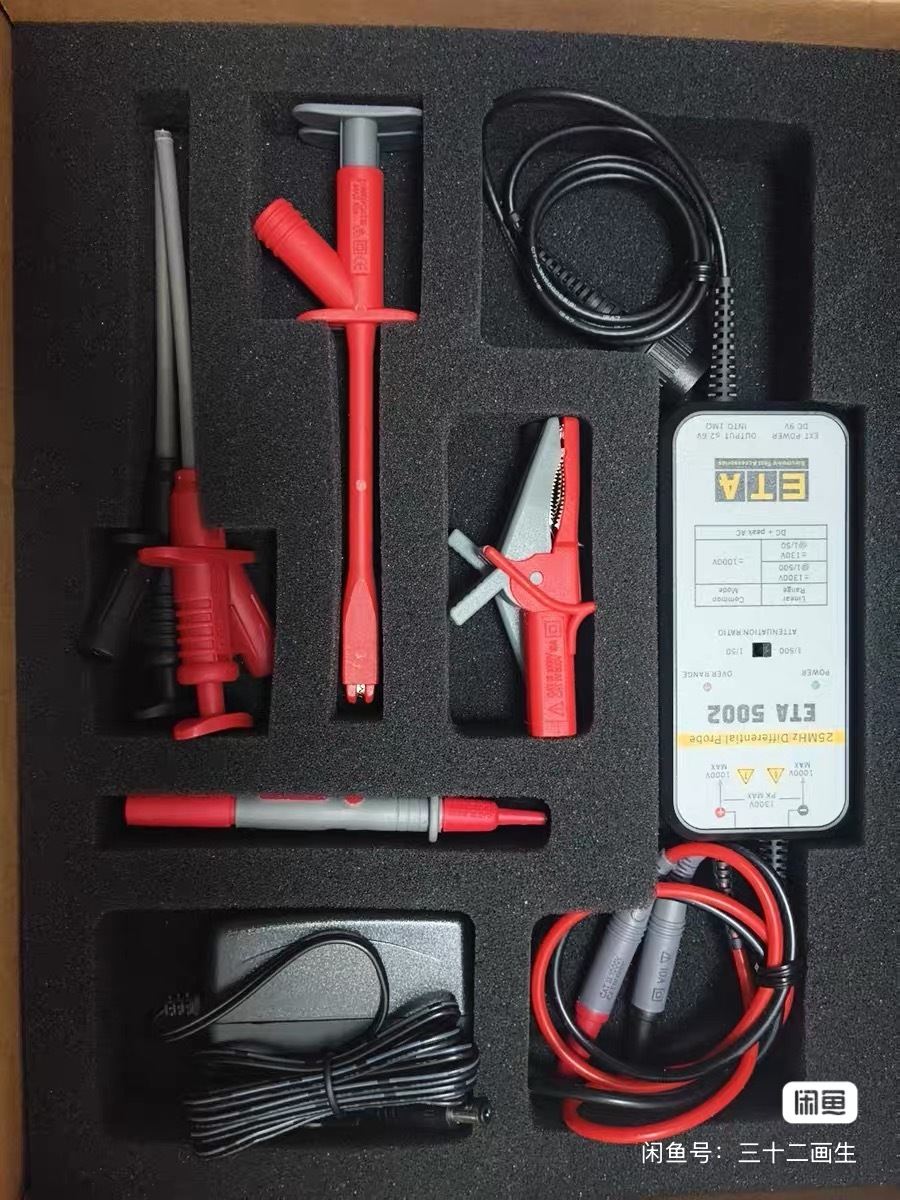

Order Note: Each probe includes calibration certificate traceable to NIST standards. Kit ships with protective cases, interchangeable tip accessories, and USB-powered bias supplies.
Elevate your measurement capabilities—invest in precision engineered for critical applications.
ETA5010 100MHz/1300V ETA5001 ETA5002 ETA5005 oscilloscope differential probe differential probe isolation probe 6-piece set
