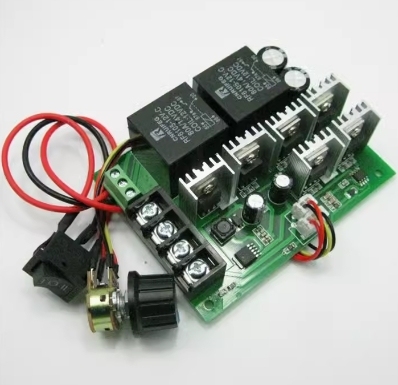

High power 40A forward and motor speed regulator with brush motor forward and controller 12V24V36V
Equipped with forward and switches, the potentiometer knob has a switch and can be controlled by PLC for forward and rotation.
Technical indicators
Input voltage: DC10-50V Output voltage: Linear under load
Output limit current: 40A (use 20A for a long time, pay attention to maintaining smooth heat dissipation conditions of the module)
Ultimate power: 2000W
Speed regulation type: current regulation speed regulation method: potentiometer (linear)
Speed regulation duty cycle range: 0-100% Control frequency: 25KHZ
Wiring type: fence type wiring terminal knob, wire length: 20CM
Product net gain: 245 grams
Main board installation size: length * width 100MM * 76MM * 28MM potentiometer installation hole: 7MM
Wiring diagram
Before powering on, ensure that the positive and negative connections are correct, and do not touch the heat sink when wiring, as it may burn the circuit board. Note that this is not a power module, and the motor must be connected to adjust the speed. If the motor is not connected, the output of the multimeter will not change, and AC power cannot be connected. Used for brush motors.
