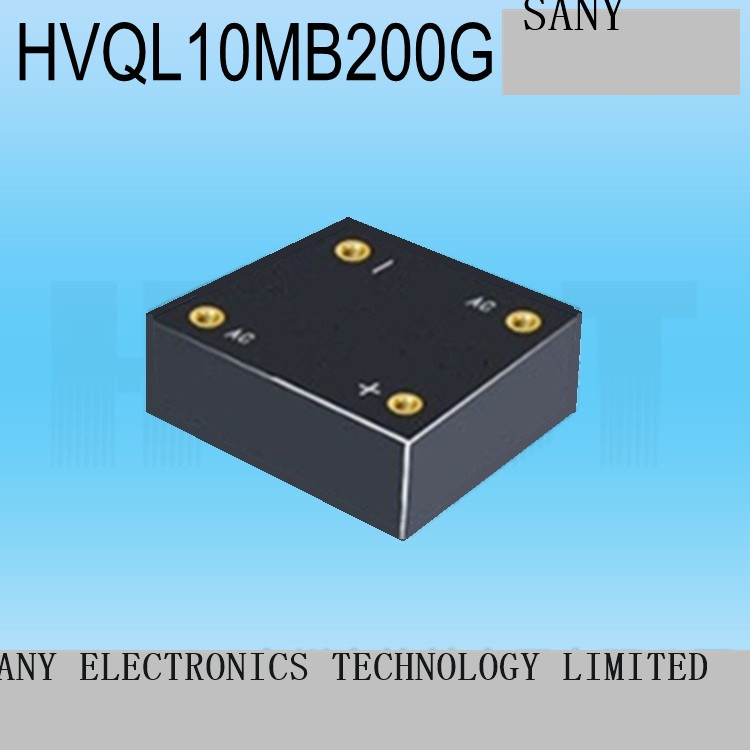

HVQL10MB200G parameter table Datasheet: |
|||
|
Model Type |
HVQL10MB200G |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
20KV |
Forward average cuRRent IF(AV) |
1.0A |
|
Forward non repetitive surge current IFSM |
20A |
Positive peak voltage IF=10 (mA) VFM |
30V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
5.0uA |
Reverse recovery time Trr |
80nS |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
50uA |
PN Junction capacitance CJ |
- |
|
Working temperature Tj |
-40~125C |
Storage temperature TSTG |
-40~125 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
