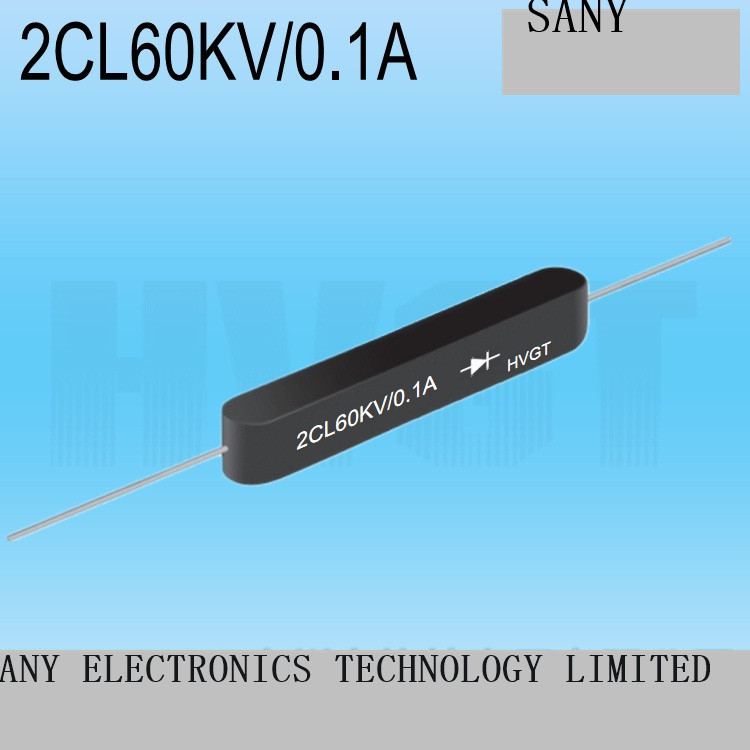

2CL60KV/0.1A parameter table Datasheet: |
|||
|
Model Type |
2CL60KV/0.1A |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
60KV |
Positive average current IF (AV) |
100mA |
|
Forward non repetitive surge current IFSM |
3A |
Positive peak voltage IF=10 (mA) VFM |
68V |
|
Reverse direct current IRTa=25 (kV) VR=VRRM |
5.0uA |
Reverse recovery time Trr |
- |
|
Reverse direct current IRToil=100 (kV) VR=VRRM |
50uA |
PN junction capacitance Cj |
- |
|
Working temperature Tj |
-40~125 C |
Storage temperature Tstg |
-40~125 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
