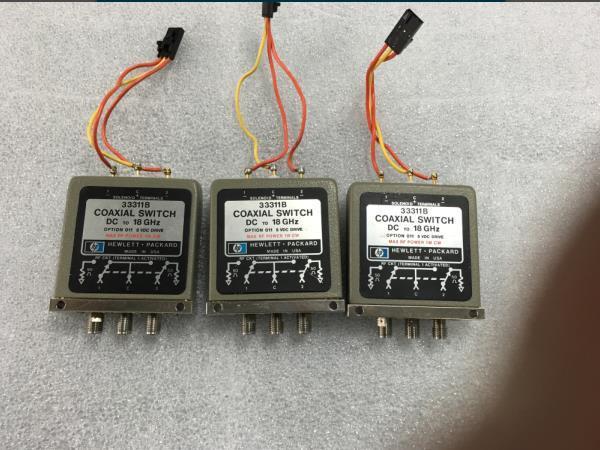

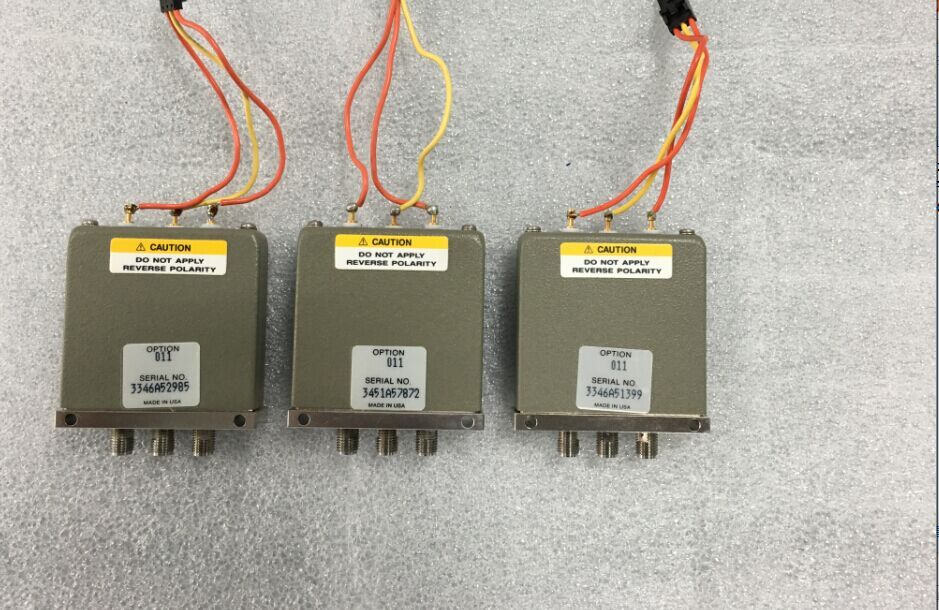

HP 33311B/8762B DC-18GHZ SPDT RF coaxial SPDT Switch 5V voltage

529446027743
HP 33311B/8762B DC-18GHZ SPDT RF coaxial SPDT Switch 5V voltage
Quantity:
-
+
(44 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(149)
Specifications

Main characteristics and technical indexes

  • Frequency range: DC to 18 GHz
  • Terminal SPDT Switch, break before make
  • Isolation: > 100 dB to 4 GHz, > 90 to 18 GHz
  • Insertion loss: < 0.25 dB to 2 GHz, < 0.5 dB to 18 GHz
  • Current interrupt
  • Position indicating function
Name: SPDT RF coaxial SPDT Switch 5V voltage
Brand:HPAgilent
Model:33311B/8762B
Frequency:DC-18GHZ
Connector: SMA
-
-
-
-
-
-
-
