| brand | HVGT |
|---|
|
|
|
Device profile |
|||
|

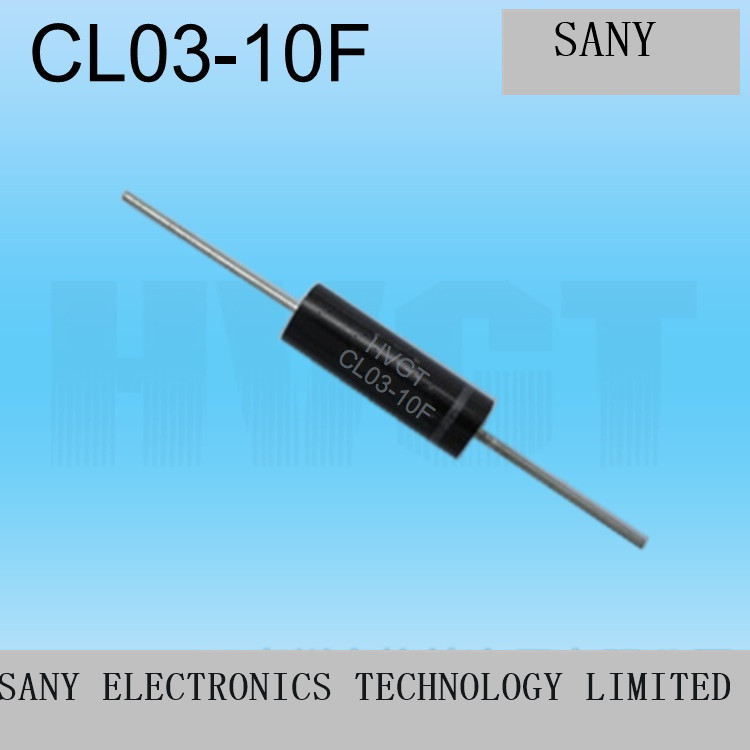

[device name] |
High voltage diode |
[production brand] |
HVGT |
|
[device model] |
CL03-10F |
[green note] |
RoHS |
|
[device package] |
DO-721 |
[sales note] |
Original authentic, brand marketing. |
|
Electrical characteristics |
||||
|
Project |
Condition |
Symbol |
Data |
Company |
|
Reverse repetitive peak voltage |
|
VRRM |
10 |
KV |
|
Positive average current |
25 degrees C |
IF (AV) |
300 |
MA |
|
Positive non repetitive surge current |
Sine 1/2 (60Hz) 25 degrees C (8.3mS) |
IFSM |
15 |
A |
|
Positive peak voltage |
VFIF |
VFM |
25 |
V |
|
Reverse direct current |
IRVRRM25 ~ C |
IR1 |
5 |
UA |
|
Reverse direct current |
IRVRRM100 degree C |
IR2 |
50 |
UA |
|
Reverse recovery time |
IF=0.5IRI.RI.RR=0.25IR |
TRR |
80 |
NS |
|
P/N junction capacitance |
At 1 V, MHzR= 0 T andA= 25 degrees C |
CJ |
15 |
PF |
|
Operating temperature range |
|
TJ |
-40~125 |
C |
|
Storage temperature range |
|
TSTG |
-40~125 |
C |
|
|
|
|
|
|
