| brand | HVGT |
|---|
 |
|
[device name] |

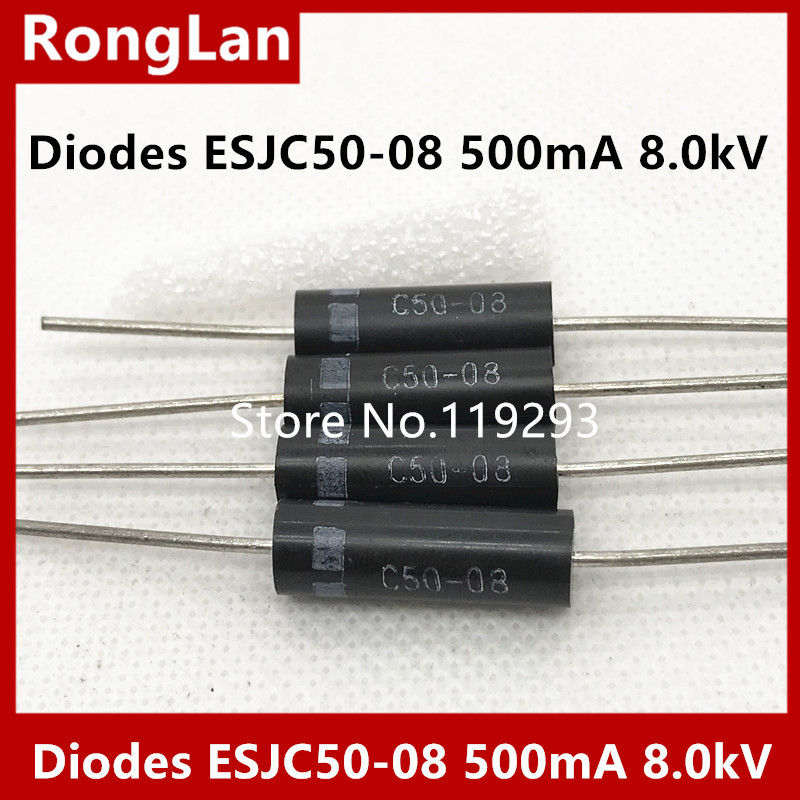

High voltage rectifier diode |
[production brand] |
HVGT |
|
[model specifications] |
ESJC50-08 |
[green note] |
RoHS lead-free environmental protection |
|
[package name] |
DO-721 |
[sales note] |
Original authentic, brand marketing |
|
Reverse repetitive peak voltage |
|
VRRM |
8.0 |
KV |
|
Positive average current |
25 C |
IF(AV) |
500 |
MA |
|
Positive non repetitive surge current |
Sine 1/2 (60Hz) 25 degrees C (8.3mS) |
IFSM |
50 |
A |
|
Positive peak voltage |
VFIF |
VFM |
15 |
V |
|
Reverse direct current |
IRVRRM25 ~ C |
IR1 |
1.0 |
UA |
|
Reverse direct current |
IRVRRM100 degree C |
IR2 |
10 |
UA |
|
Reverse recovery time |
IF=0.5IRI.RI.RR=0.25IR |
TRR |
50 |
NS |
|
P/N junction capacitance |
At 1 V, MHzR= 0 T andA= 25 degrees C |
CJ |
- |
PF |
|
Working temperature |
|
TJ |
-40~125 |
C |
|
Storage temperature range |
|
TSTG |
-40~125 |
C |
