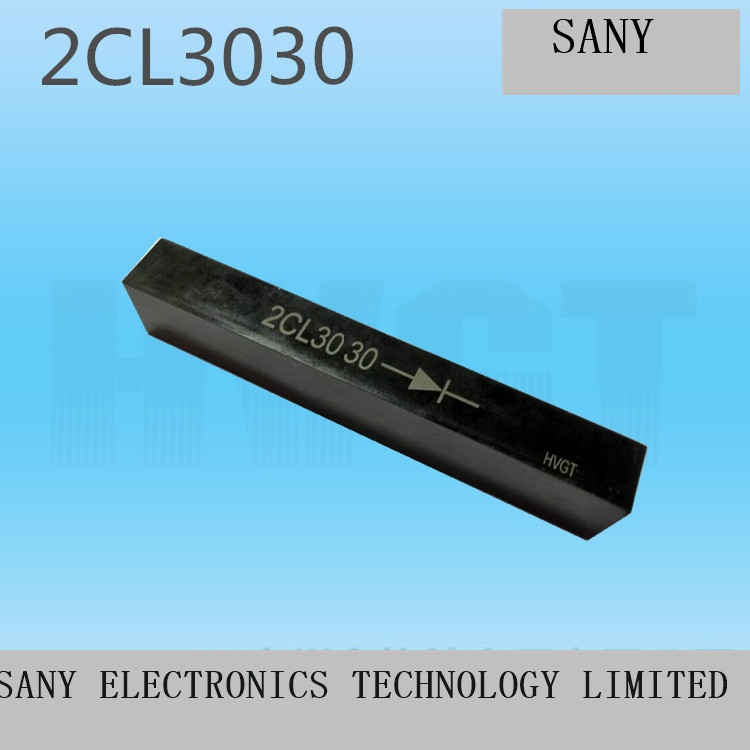

![[HVGT] power frequency high voltage silicon stack 2CL3030 high voltage silicon rectifier stack 2CL30KV/3A](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1610/products/18/0aa9cb7c54.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
| brand | HVGT |
|---|
|
2CL3030parameter table Datasheet: |
|||
|
Model Type |
2CL3030 |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
30KV |
Forward average cuRRent IF(AV) |
3.0A |
|
Forward non repetitive surge current IFSM |
60A |
Positive peak voltage IF=10 (mA) VFM |
36V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
10uA |
Reverse recovery time Trr |
- |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
100uA |
PN Junction capacitance CJ |
- |
|
Working temperature Tj |
-40~125C |
Storage temperature TSTG |
-40~125 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
