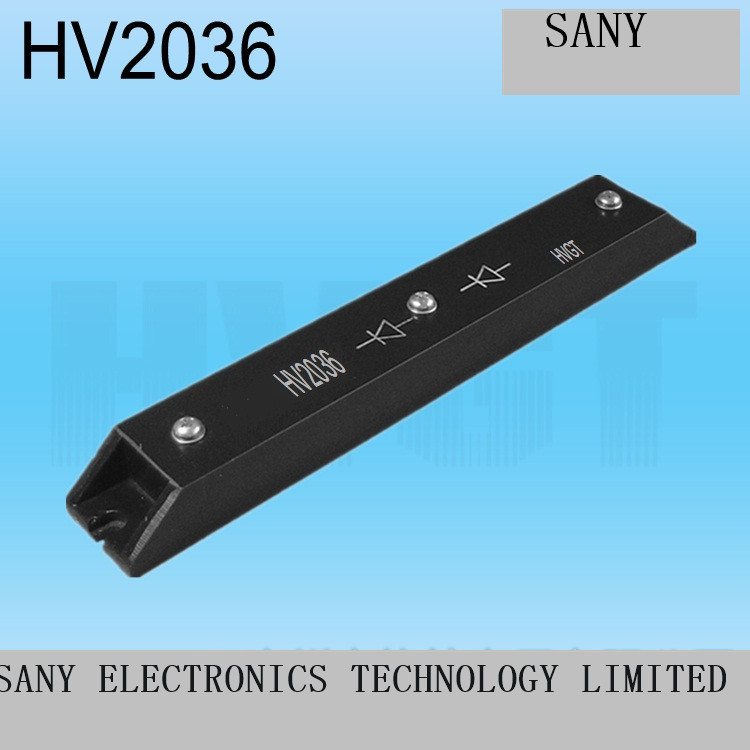

![[HVGT] power frequency high voltage silicon stack HV2036 high voltage silicon rectifier stack](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1610/products/18/97f03f0b2c.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
|
HV2036Parameter table Datasheet: |
|||
|
Model Type |
Manufacturer Manufacturer |
||
|
Reverse repetitive peak voltage VRRM |
36KV*2 |
Positive average current IF (AV) |
|
|
Forward non repetitive surge current IFSM |
60A |
Positive peak voltage IF=10 (mA) VFM |
64V*2 |
|
Reverse direct current IRTa=25 (kV) VR=VRRM |
5.0uA |
Reverse recovery time Trr |
- |
|
Reverse direct current IRToil=100 (kV) VR=VRRM |
50uA |
PN junction capacitance Cj |
- |
|
Working temperature Tj |
-40~125 C |
Storage temperature Tstg |
-40~125 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
