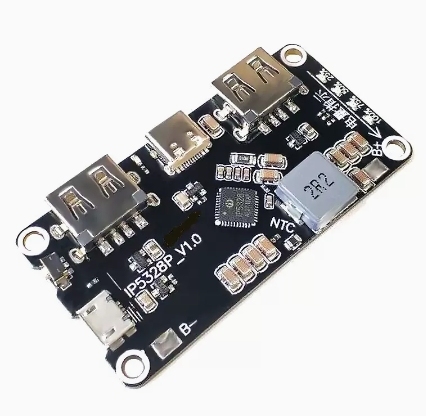

Adopting the Yingjixin IP5328P mobile power solution, with four layers of sinking gold plates, optimized layout and wiring, supporting multiple fast charging protocols, bidirectional 18W fast charging, a total of 4 charging interfaces can be supported: 2 USB-A output interfaces, 1 USB-C interface, and 1 Micro USB interface. All 4 interfaces support fast charging, including 2 USB-A interfaces that support QC3.0, FCP, AFC, MTK, and SFCP fast charging outputs, with a power of up to 18W; Supports Apple, , and BC1.2 protocols. The USB-C port supports USB PD bidirectional fast charging, and is compatible with FCP, AFC, SFCP fast charging inputs as well as QC3.0, FCP, AFC, MTK, and SFCP fast charging outputs. MicroUSB supports FCP, AFC, and SFCP fast charging inputs.
Product module parameters:
Size: 65mm * 32.5mm Ultra thin four corner hole diameter 3mm
Output interface: USBA+USBA+TYPE-C supports fast charging output (fast charging protocol detailed in the specification sheet)
Input interface: MICRO+TYPE-C supports fast charging input (please refer to the specifications for the fast charging protocol)
Battery type: 3.7V battery (collectible or 18650 lithium battery), single section parallel connection, unlimited capacity. The larger the capacity, the longer the charging and discharging time. For safety reasons, please add a protective board to the battery. The motherboard has positive and negative poles, and the battery cannot be connected in. The consequences of connecting in and burning the motherboard are your own responsibility!!!
Fast charging indicator: Input/output high-voltage fast charging indicator light
Conversion efficiency: Efficiency of 95% (efficiency varies with different voltage and power). Please refer to the specifications for details
Button: If the duration of the button is longer than 60ms but less than 2s, it is a short press action. Short press will turn on the power display light and boost output. Long press for 10s can reset the entire system, and button actions less than 30ms will not have any response.
Automatic detection function for phone insertion:
IP5328P automatically detects phone insertion, immediately wakes up from standby mode, turns on 5V boost to charge the phone, eliminates button operation, and supports keyless solutions.
