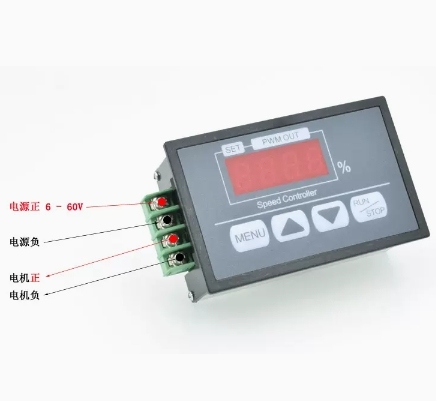

Key speed controller, digital display percentage tachometer, DC motor slow start and slow stop controller 6V12V60

Key speed controller, digital display percentage tachometer, DC motor slow start and slow stop controller 6V12V60
Product parameters
Product Name: Zhongwei Q8-42S Brand: Zhongwei
Input voltage: DC6-60V Output voltage: Linear under load
Output current: 0-30A Continuous current: Within 20A
Speed regulation type: current regulation speed regulation method: jog+-
Speed range: 0-100% Control frequency: 21KHZ
Wiring type: fence type wiring terminal support motor: brushed motor
Module size: length * width * height 96mm * 61mm * 34mm Product net weight: 100g
Panel opening: length * width 92mm * 56mm Speed digital display: percentage 0-100
The slow start time setting function is adjustable from 0 to 10 seconds from 1:000 to 100%. The default speed is 1 second.
Slow stop time setting function: The slow stop time is adjustable between 0 and 10 seconds, with a default of 1 second.
The speed lower limit setting function is adjustable from 0 to 80% for a minimum speed of 3:000 to 080, and if it is less than the maximum speed setting value, it defaults to 0.
The speed upper limit setting function is adjustable from 4:000 to 100%, with a maximum speed between 0 and 100%. If it is greater than the minimum speed setting value, it defaults to 100%.
Acceleration and deceleration value setting function 5:001 002 005 010 015 020 025: The speed changes by 1%, 2%, 5%, 10%, 15%, 20%, and 25% for each press of the acceleration and deceleration keys.
Attention:
The input voltage must be divided into positive and negative, and 220V cannot be input
The input voltage should be equal to the rated voltage of the motor within 6-60V
