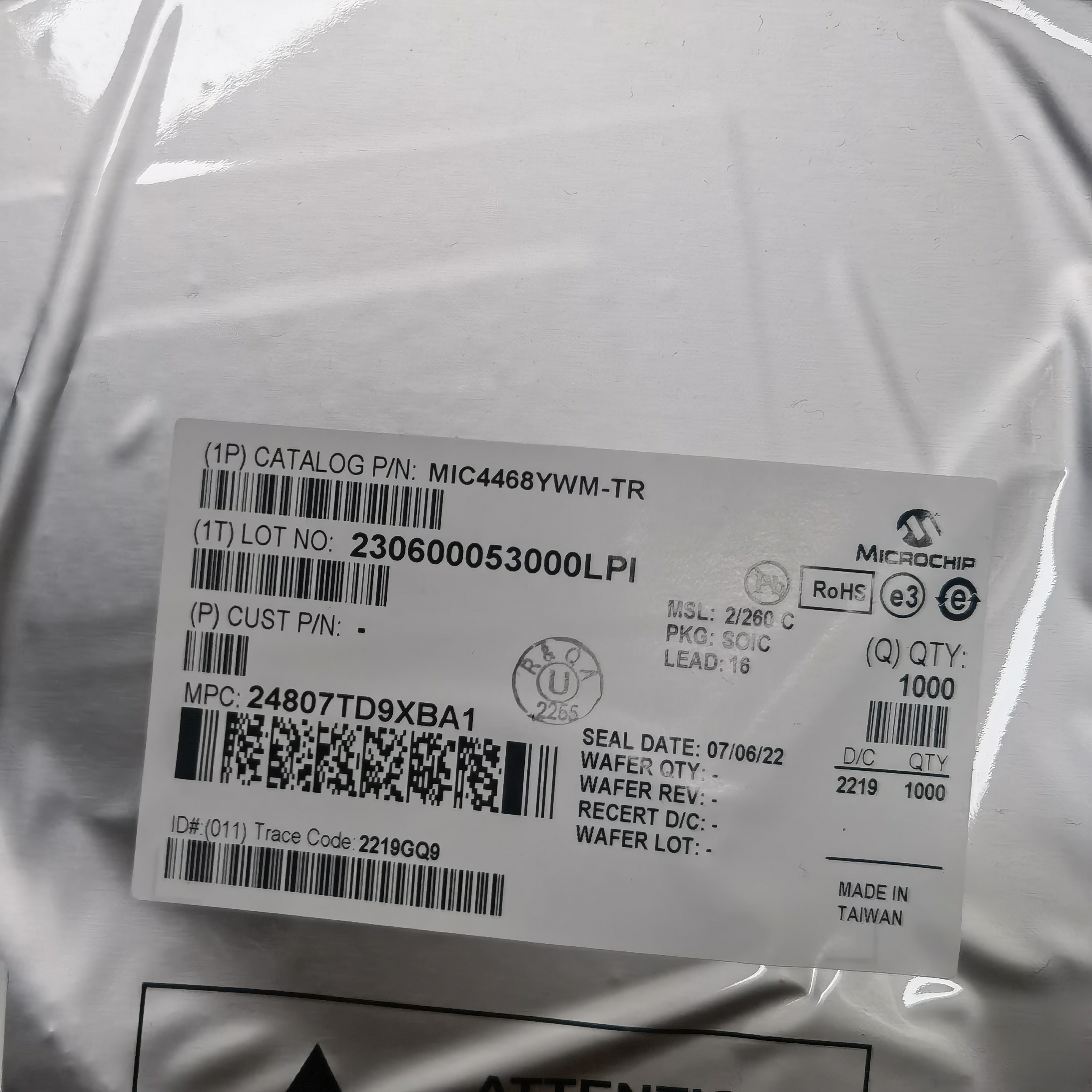

Precision Power Control: Introducing the MIC4468YWM-TR Quad Low-Side MOSFET Gate Driver
Overview
Engineered for demanding switching applications, the a high-performance solution for driving low-side MOSFETs and IGBTs. This monolithic integrated circuit combines robust drive capability, exceptional switching speed, and sophisticated logic integration within a compact 16-Lead SOIC (150 mil wide body) surface-mount package. Supplied in Tape & Reel (TR) format, it seamlessly integrates into automated production workflows.
Key Features & Technical Advantages
- Quad Channel Configuration: Incorporates four independent, identical driver channels, enabling efficient multi-phase circuit design or paralleling channels for enhanced output current capability. This architecture optimizes PCB space utilization for compact solutions.
- High Peak Drive Current (1.2A): Delivers transient currents up to 1.2A peak per channel, significantly reducing MOSFET turn times. This capability minimizes switching losses and improves system efficiency in high-frequency switching topologies.
- **Optimized for Low-Side Switching Designed specifically for low-side MOSFET control, featuring very low output impedance (~5 Ohms) in both high and low states to achieve fast switching transitions.
- Broad Input Voltage Range: Tolerant TTL/CMOS compatible inputs operate reliably across a wide input voltage logic range, ensuring versatile interfacing with various controller types.
- Fast Propagation Delays: Offers consistent, minimal propagation delays across channels (typically 70ns), crucial for precise Outputs (Typically > 1000V/µs):**ely fast output voltage transitions contribute to reduced dead times and enhanced power stage performance.
- Robust Protection: Equipped with inherent shoot-through prevention logic, underpinning safe operational characteristics and enhancing system reliability.
Electrical Specifications
| Parameter | Value/Range | | :--------------------- | :---------------------------- | | Operating Voltage Range| 4.5V to18V** | | Peak Output Current | 1.A per channel (0.5A DC) | | Propagation Delay (tpd)| Typically 70ns | | Input Threshold (Vth) | TTL/CMOS Compatible | | Output Rise/Fall Time | Fast, typically < 20ns (highly dependent on load capacitance) | | Supply Current (I_q) | Low Quiescent Current, typically < 5mA| | Package | 16-SOIC (300mil / 7.5mm wide) | | Packaging | SMD Tape & Reel (TR) |
Typical Applications
- Switch Mode Power Supplies (SMPS)
- Motor Drive / H-Bridge Control Circuits (Low-Side Only)
- Pol Phase Synchronous Rectifiers
- High-Current Pulse Generators
- Lighting Control Systems
- Low-Side Drive in PFC Stages
Conclusion
The MIC4468YWM-TR emerges as an indispensable component for engineers designing high-speed, reliable power switching systems. Its combination of quad independent channels, robust 1.2A peak output drive capability, fast switching characteristics, and compact SOIC packaging for automated assembly positions it as an optimal choice for demanding applications where efficiency, precision control, and board space are critical. Invest in enhanced with this advanced gate driver solution.
