Mini-Circuits ZBSC-615+ 1-500MHZ six SMA power divider

Name: Mini-Circuits ZBSC-615+ 1-500MHZ six SMA power divider
Brand: Re-spareparts
Price: 600 USD
Availability: InStock

0.0 (0 Reviews)

0 Sold

~~$700.00~~ $600.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $2.00 OFF ON ORDERS OVER $49.00
GET $4.00 OFF ON ORDERS OVER $79.00
GET $6.00 OFF ON ORDERS OVER $109.00
GET $8.00 OFF ON ORDERS OVER $139.00
GET $10.00 OFF ON ORDERS OVER $169.00
GET $12.00 OFF ON ORDERS OVER $199.00
GET $19.00 OFF ON ORDERS OVER $299.00
View More
View Less

Add to Favorites (0)

1/1

Description

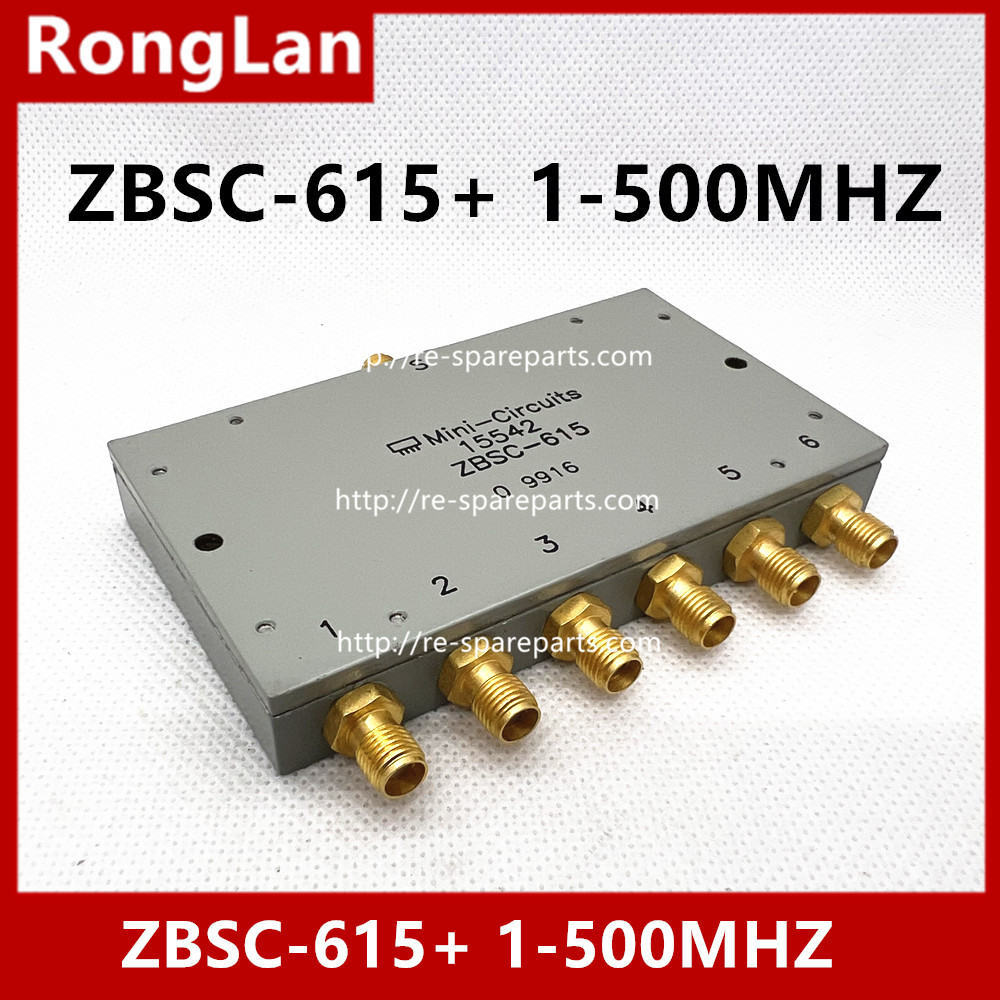

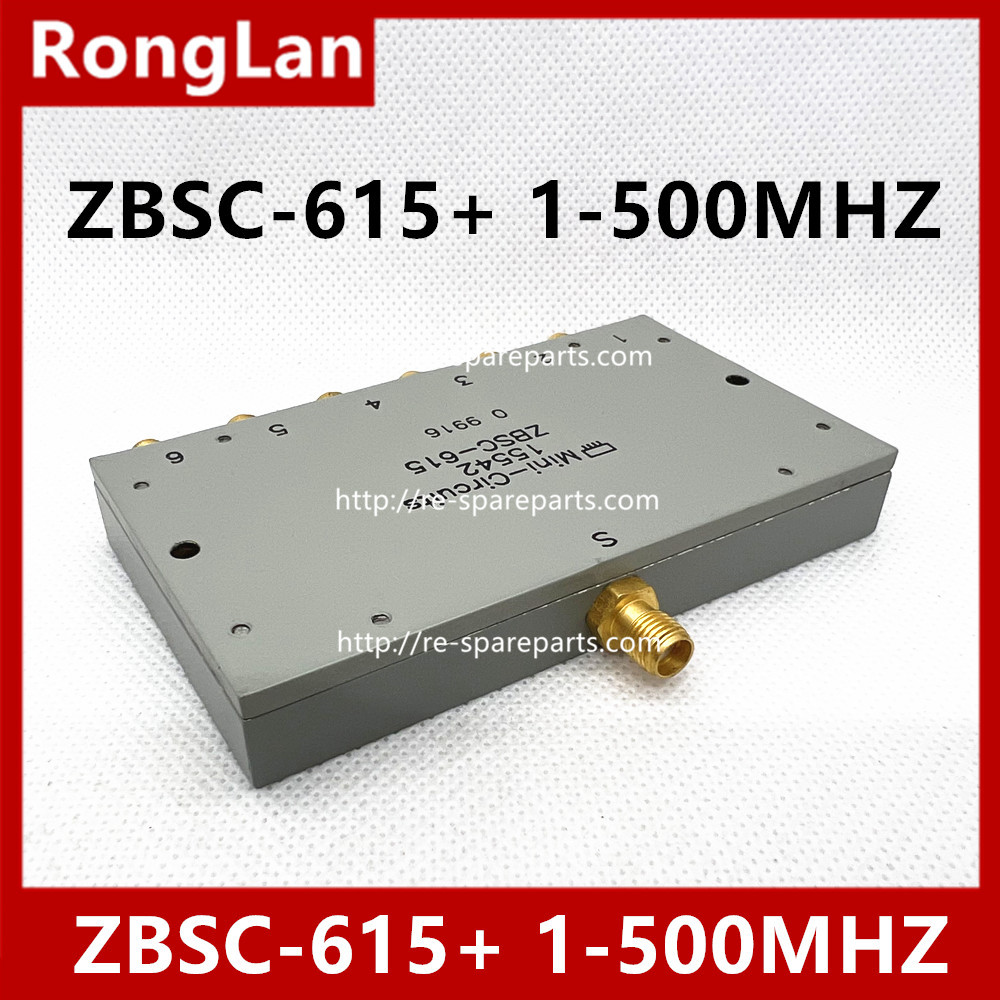

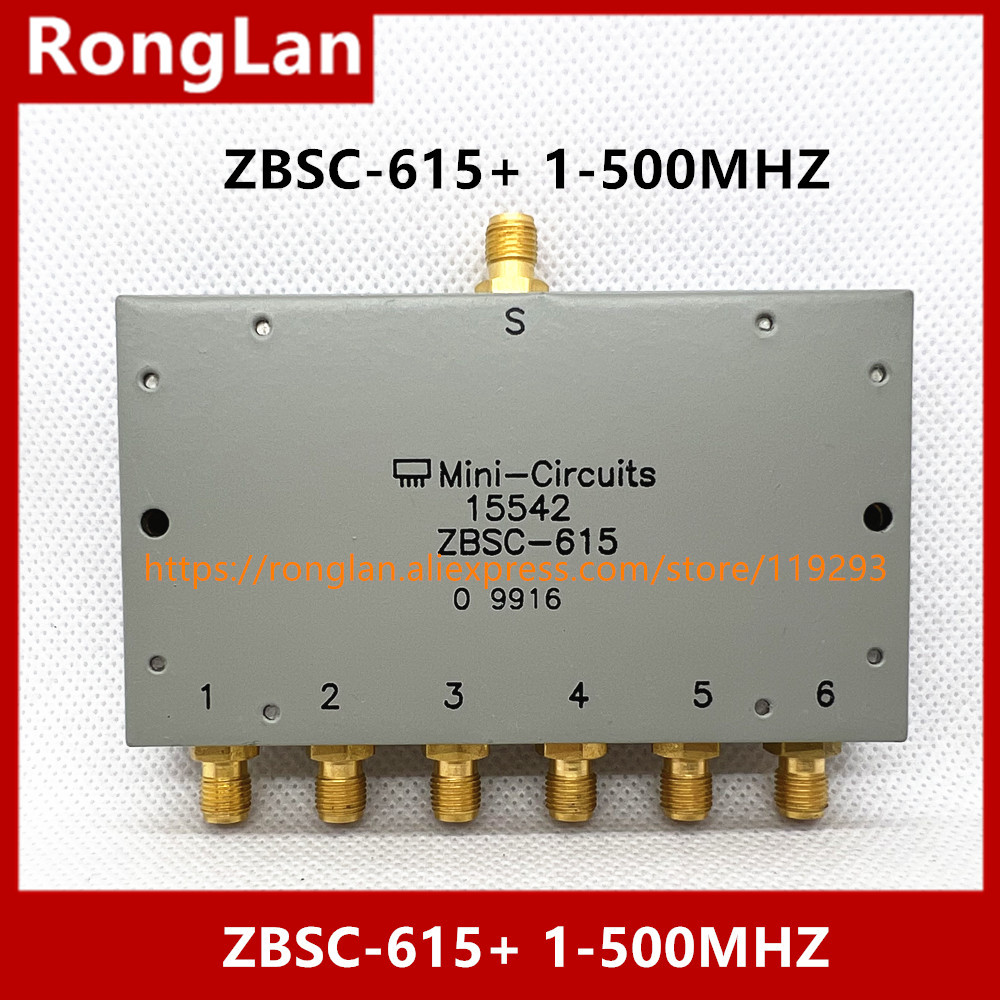

Mini-Circuits ZBSC-615+ 1-500MHz Six SMA Power Divider

Overview

The Mini-Circuits ZBSC-615+ is a high-performance six-way power divider designed for RF and microwave1 MHz to 500 MHz, this component delivers exceptional amplitude and phase consistency, making it ideal for demanding systems such as phased arrays, test instrumentation, and multi-channel receivers.

Key Features

Broadband Operation: Covers 1 MHz to 500 MHz, ensuring versatility across diverse applications.
Low Insertion Loss: Optimized for minimal signal attenuation (±1.5 dB typical), preserving system sensitivity.
High Isolation: Port-to-port isolation ≥14 dB reduces crosstalk between output channels.
Excellent Amplitude Balance: ±0.6 dB typical amplitude balance enhances signal integrity in multi-path systems.
Robust Phase Tracking: Critical for phase relationships.
SMA Connectors: Industry-standard SMA interfaces ensure reliable connectivity and mechanical durability.
Passive Design: No external power or bias required, simplifying integration.

Technical Specifications

Frequency Range: 1 - 500 MHz
Insertion Loss: 3.5 dB max (per path)
Amplitude Balance: ±0.6 dB typ
Phase Balance: ±5° typ
Isolation: 14 dB min
VSWR: 1.5:1 max (input/output)
Power Handling: 1 W (average), 10 W (peak) +85°C
Connectors: 6 SMA female ports (1 input, 6 outputs)

Applications

Phased-array antenna systems
Multi-channel data acquisition
Signal distribution in test & measurement setups
RF sensor networks
Broadcast and communications infrastructure

Quality Assurance

Manufactured under ISO 9001-certified processes, the ZBSC-615+ undergoes rigorous testing to guarantee performance compliance across all environmental conditions. Gold-plated connectors and hermetic packaging ensure long-term reliability in harsh operating environments.

Why Choose ZBSC-615+?
This power divider combines Mini-Circ engineering with uncompromising broadband performance. Its six-way symmetrical splitting capability provides a cost-effective solution for systems requiring uniform signal distribution without compromising phase coherence—essential for advanced RF architectures.

Learn More & Order | Datasheet Download
