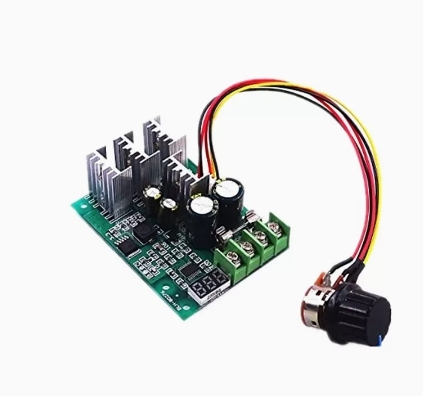

Motor tachometer digital display PWM DC motor speed controller drive module 6V12V24V36V48V60V
Motor tachometer digital display PWM DC motor speed controller drive module 6V12V24V36V48V60V
0-100% percentage speed display for accurate positioning
6-60V universal high-power. Potentiometer with switch
Technical parameters
Working voltage 6V-60V, output voltage linear under load
Output current 30, continuous current 20A
Speed regulation range 0% -100% overload protection with fuse
Speed regulation method, potentiometer speed regulation type, current regulation
The motherboard size is 75mm * 56mm * 28mm, and the net weight of the product is 75g
Wiring method: fence type wiring terminal product PWM frequency: 15KHZ
