brand | HVGT |
---|
Device profile |
|||
[device name] |

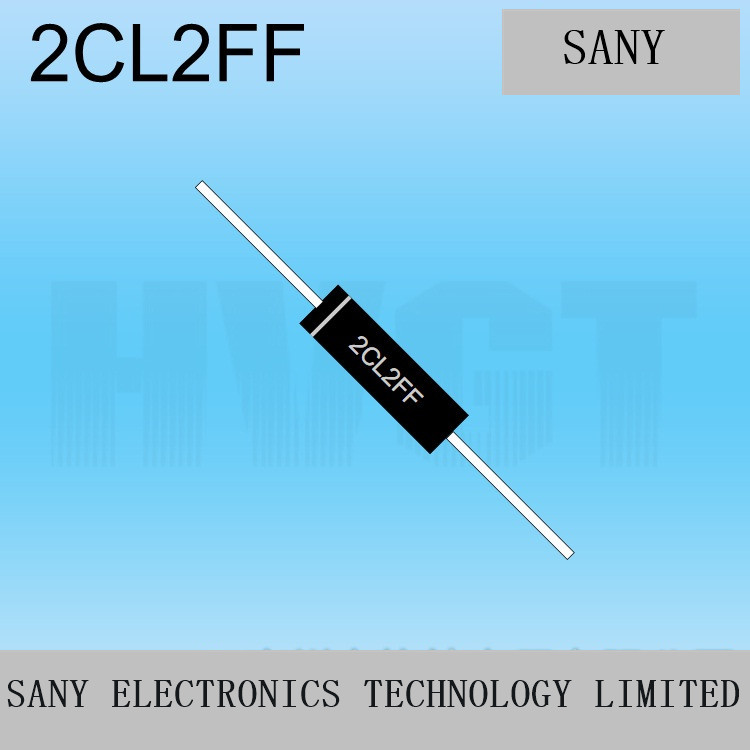

High voltage diode |
[production brand] |
HVGT |
[device model] |
2CL2FF |
[green note] |
RoHS |
[device package] |
DO-415 |
[sales note] |
Original authentic, brand marketing. |
Electrical characteristics |
||||
Project |
Condition |
Symbol |
Data |
Company |
Reverse repetitive peak voltage |
|
VRRM |
Eight |
KV |
Positive average current |
25 degrees C |
IF (AV) |
60 |
MA |
Positive non repetitive surge current |
Sine 1/2 (60Hz) 25 degrees C (8.3mS) |
IFSM |
10 |
A |
Positive peak voltage |
VFIF |
VFM |
16 |
V |
Reverse direct current |
IRVRRM25 ~ C |
IR1 |
2 |
UA |
Reverse direct current |
IRVRRM100 degree C |
IR2 |
50 |
UA |
Reverse recovery time |
IF=0.5IRI.RI.RR=0.25IR |
TRR |
150 |
NS |
P/N junction capacitance |
At 1 V, MHzR= 0 T andA= 25 degrees C |
CJ |
15 |
PF |
Operating temperature range |
|
TJ |
-40~125 |
C |
Storage temperature range |
|
TSTG |
-40~125 |
C |
