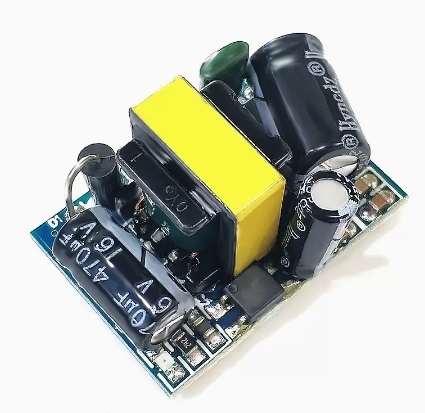

Precision 12V400ma isolation switch power supply module (4.8W)/AC-DC voltage reduction module 220V to 12V
This power supply is an isolated module power supply with temperature protection, overcurrent protection, and full short-circuit protection. It has high and low voltage isolation, AC85~265V wide voltage input, 431 precise voltage stabilization DC12V output, compact size, stable performance, and high cost-effectiveness
Input voltage AC 85~265v 50/60HZ
Output voltage DC12V
Working current 400mA
Peak current 450mA
Power 4.5W
3. Product dimensions
Volume: length, width, height 3 * 2 * 1.8 (cm)
4. Installation method
A. Pins can be installed at the input and output terminals and directly soldered onto the PCB
B. Glue fixation
5. Input and output identification diagram
L N is the input for communication.+- For DC output
6. Reliability requirements
Under an environment of 25 ℃ and 80% load, the average time between failures is greater than 16000 hours
