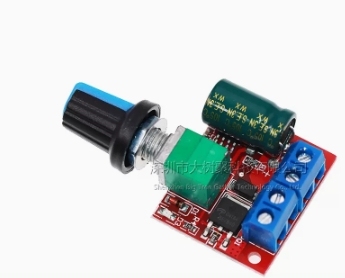

PWM DC motor speed controller 5V-35V speed control switch 5A switch function LED dimmer
Product parameters
1. Working voltage: DC4.5V-35V
2. Output current: 0-5A
three
Output power: 90W (maximum)
four
Static current: 7u A (standby mode)
5. PWM
Duty cycle: 1% -100%
6. PWM
Frequency: 20kHz
7. Dimensions: 30MM long x 26MM wide (excluding handle) x 14MM high
8. Weight: 0.013KG
Notes:
·The input of the DC motor speed controller is DC power, and it cannot be directly connected to AC power (such as household 220V AC power), otherwise it will burn out!!!
·Do not connect the positive and negative terminals of the DC power supply, otherwise the speed controller may be damaged.
·The motor can be operated without distinguishing between positive and negative directions. When the running direction does not match the expected direction, the direction can be changed by adjusting the wire sequence.
·Adjusting the potentiometer knob can change the duty cycle of the governor output and the motor speed.
