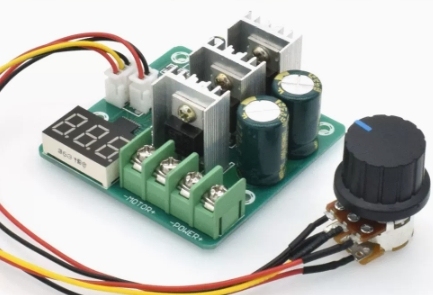

PWM DC motor speed regulator with brush motor drive switch 30A digital tachometer 6V12V24V48
Product features
Digital display 0-100 percentage table with precise positioning
6-60V wide voltage 30A
Product parameters
Input voltage: DC6-60V Output voltage: Linear under load
Supported motor: Brushed motor scale positioning: 0-100 digital display
Output current: 0-30A Continuous current: 20A
Speed regulation type: current regulation speed regulation method: potentiometer
Speed range: 0-100% Control frequency: 15KHZ
Wiring type: fence type wiring terminal knob, wire length: 20CM
Module size: L * W * H 60mm * 60mm * 28mm Product net gain: 62g
Panel opening: length * width 50mm * 35mm, rotational speed digital display: percentage 0-100
