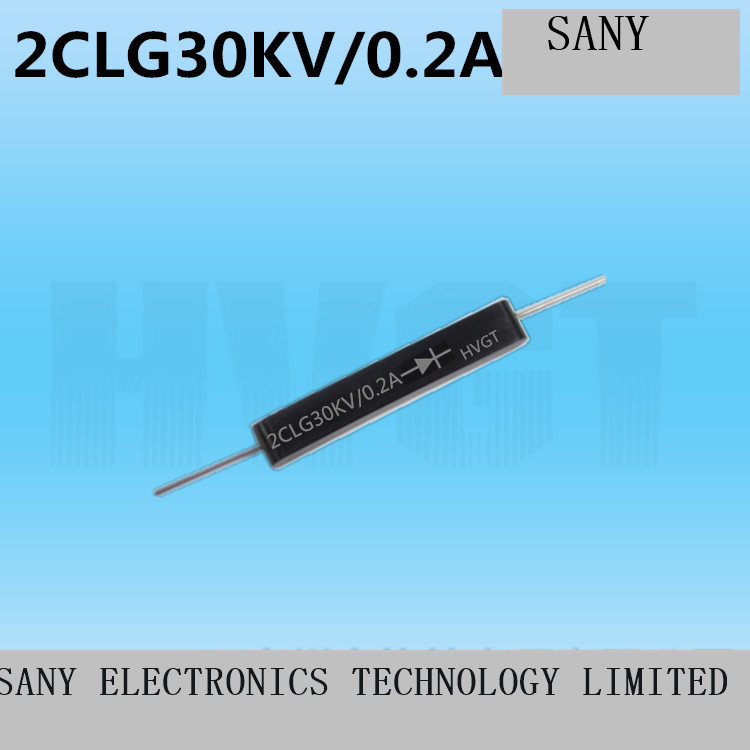

![[Scott] electronic high-voltage silicon stack 2CLG30KV/0.2A high frequency high voltage rectifier stack 30KV200mA](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1610/products/18/e38512740b.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
|
2CLG30KV/0.2A parameter table Datasheet: |
|||
|
Model Type |
2CLG30KV/0.2A |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
30KV |
Forward average cuRRent IF(AV) |
200mA |
|
Forward non repetitive surge current IFSM |
6A |
Positive peak voltage IF=10 (mA) VFM |
36V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
5.0uA |
Reverse recovery time Trr |
80nS |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
50uA |
PN Junction capacitance CJ |
- |
|
Working temperature Tj |
-40~125C |
Storage temperature TSTG |
-40~125 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
