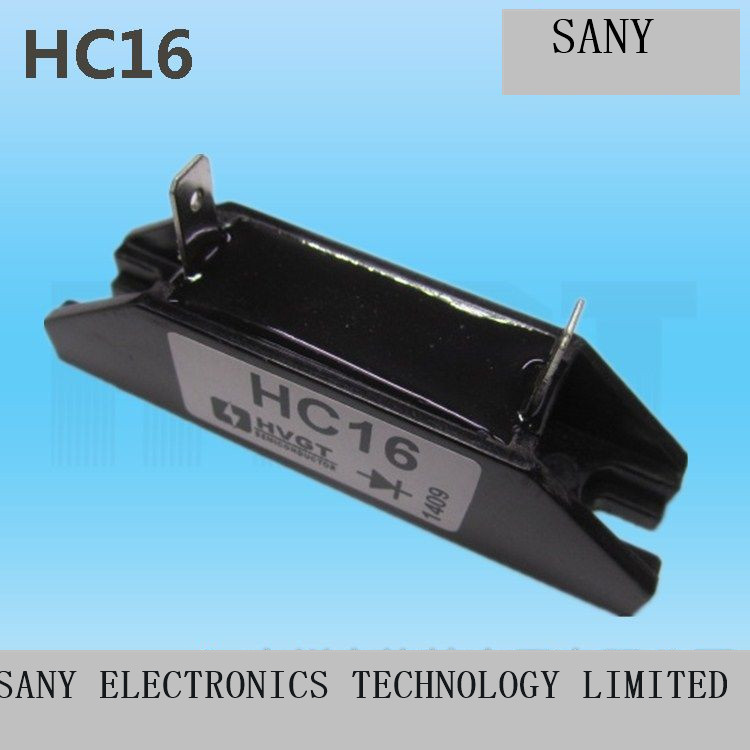

![[Scott] electronic high-voltage silicon stack HC16 high voltage silicon rectifier stack 1A 16kV high frequency silicon stack](http://ueeshop.ly200-cdn.com/u_file/UPBI/UPBI264/1610/products/18/2466fcc1dc.jpg?x-oss-process=image/quality,q_100/resize,m_lfit,h_1000,w_1000)
| brand | HVGT |
|---|
|
HC16 parameter table Datasheet: |
|||
|
Model Type |
HC16 |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
16KV |
Forward average cuRRent IF(AV) |
1.0A |
|
Forward non repetitive surge current IFSM |
50A |
Positive peak voltage IF=10 (mA) VFM |
15V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
0.5uA |
Reverse recovery time Trr |
- |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
5.0uA |
PN Junction capacitance CJ |
- |
|
Working temperature Tj |
-40~125C |
Storage temperature TSTG |
-40~125 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
