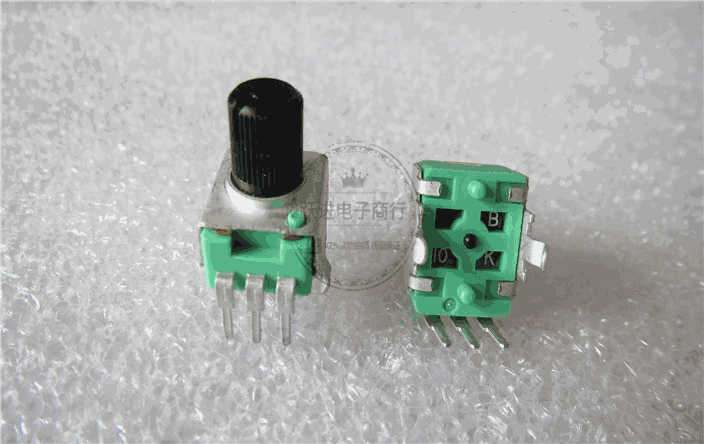

Product Introduction: Short Axis Inverter Switch B103 American Bi 09 Type Single Connection Vertical Potentiometer B10K-8MM Plum Handle

Overview

The Short Axis Inverter Switch B103 American Bi 09 Type Single Connection Vertical Potentiometer B10K-8MM Plum Handle is a precision-engineered electronic component designed for reliable performance in applications requiring precise resistance control. Manufactured to adhere to the stringent Bi 09 Type potentiometer ensures robust electrical characteristics and mechanical durability.

Key Technical Features

Core Specifications

• Model: B103
• Termination: Single Connection
• Standard Compliance: American Bi 09 Type
• Resistance Value: B10K (10kΩ Linear Taper)
• Shaft Dimensions: 8mm Short Axis
• Handle Material: Plum (Engineered Composite)

Performance Attributes

• Rotation Life: ≥10,000 cycles
• Operating Temperature Range: -55°C to +125°C
• Insulation Resistance: ≥100MΩ
• Dielectric Strength: 250V AC (1% (standard) | ±10% (on request)

Application Scenarios

This vertical potentiometer is optimized for:

• Audio equipment volume/gain control
• Industrial automation feedback systems
• Instrumentation calibration interfaces
• Robotics and servo positioning adjustment
• Voltage regulation in power supplies

Performance Advantages

1. Precision Engineering
   The vertical mounting design minimizes PCB footprint while ensuring optimal thermal dissipation.

2. Durability Guarantee
   Plum handle construction provides enhanced torque resistance (up to 0.5Nm) and anti-static properties.

3. Electrical Stability
   Gold-plated contacts guarantee <10mΩ contact resistance variance throughout operational lifespan.

4. Environmental Resilience
   Hermetically sealed tracking path prevents contamination ingress (IP40 equivalent protection).

Quality Assurance

• 100% electrical testing at 25°C/77°F benchmark conditions
• Burn-in screening per MIL-STD-202G Method 108
• RoHS3 compliant material sourcing

Why Choose This Potentiometer?

"The B103 variant sets industry benchmarks for reliability in compact resistance control applications. Its vertical orientation and short-axis design resolve spatial constraints without compromising performance––making it the logical choice for next-generation electronics."

Ordering Information

Component | Value | Packaging
---------|-------|----------
Short Axis B10K Pot | B103-B10K-VERT | Tube (50 units)
Optional Modifications | ±10% tolerance | Custom labeling
Samples Authorization | MOQ 100 units | -

Elevate your designs with guaranteed parameter stability. Request datasheet B103-B10K-0A via technical@domain.com.
