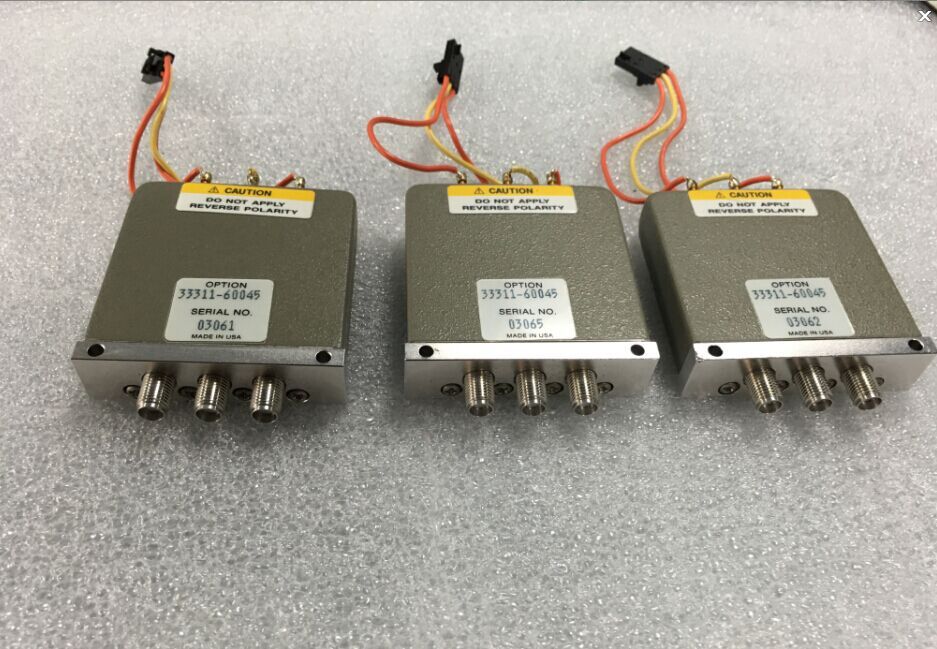

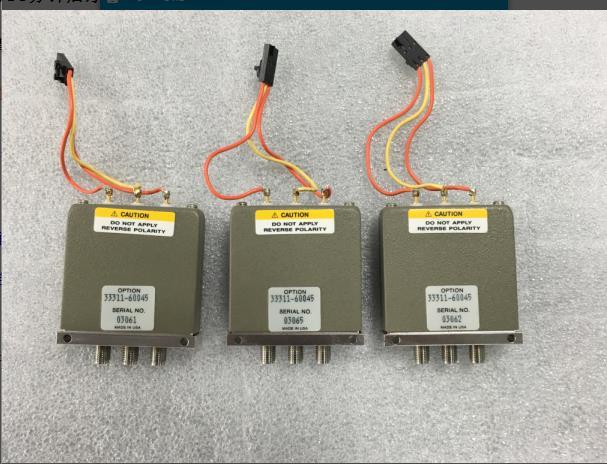

The Agilent HP 33311-60045 DC-18GHZ RF coaxial SPDT Switch SMA

529514565789
The Agilent HP 33311-60045 DC-18GHZ RF coaxial SPDT Switch SMA
Quantity:
-
+
(22 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(189)
Specifications

Main characteristics and technical indexes

  • Frequency range: DC to 18 GHz
  • Terminal SPDT Switch, break before make
  • Isolation: > 100 dB to 4 GHz, > 90 to 18 GHz
  • Insertion loss: < 0.25 dB to 2 GHz, < 0.5 dB to 18 GHz
  • Current interrupt
  • Position indicating function
  • Name: RF coaxial SPDT Switch SMA
    Agilent HP
    Model: 33311-60045
    Frequency:DC-18GHZ
    Connector: SMA
    -
    -
    -
    -
    -
    -
    -
