Main characteristics and technical indexes
Characteristic
- SP6T configuration, load terminal
- Electronic positioner
- Stop function
- Magnetic lock
Excellent RF performance
- Excellent isolation, 12 >90 when dB GHz (typical value)
- 5 million service life, typical value
- To ensure that the insertion loss is 0.03 dB after 2 million times of repeated use
describe
L7106B Keysight multi port switch can improve the accuracy of signal radio frequency, microwave signal routing and testing applications. This economical electromechanical switch provides superior isolation, and ensures that the insertion loss is only 0.03 dB after 2 million times of repeated use.L7106B has a low insertion loss, which can reduce the random error in the measurement path and improve the measurement accuracy. The repeatability and reliability of the switch ensure measurement accuracy and reduce the cost of ownership by reducing the number of calibration times and extending the run time of the test system. Is Germany has strict design process and manufacturing technology indicators, and thus can achieve high repeatability of the conversion function.
L7106B Keysight load port switch for signal monitoring and routing applications to provide price economy, the solution to the trust, the system integration in the field of manufacturing test engineers the ideal choice.

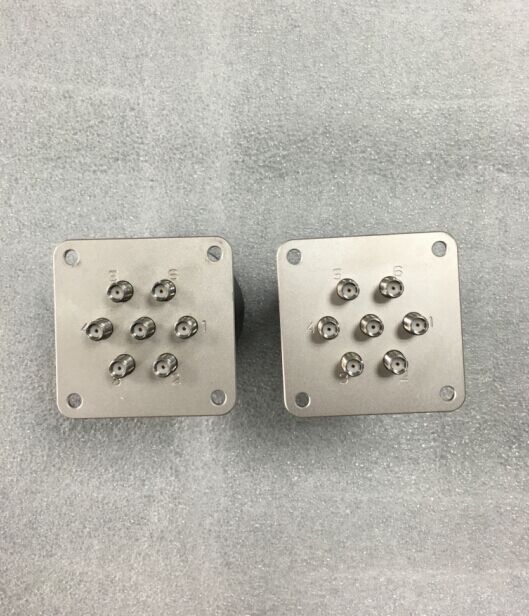

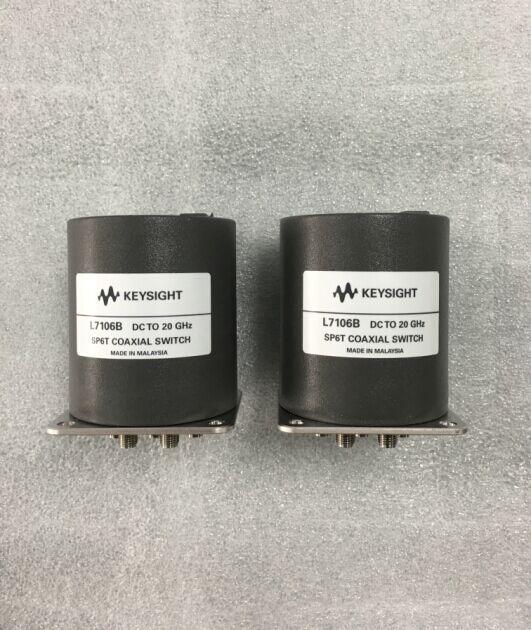

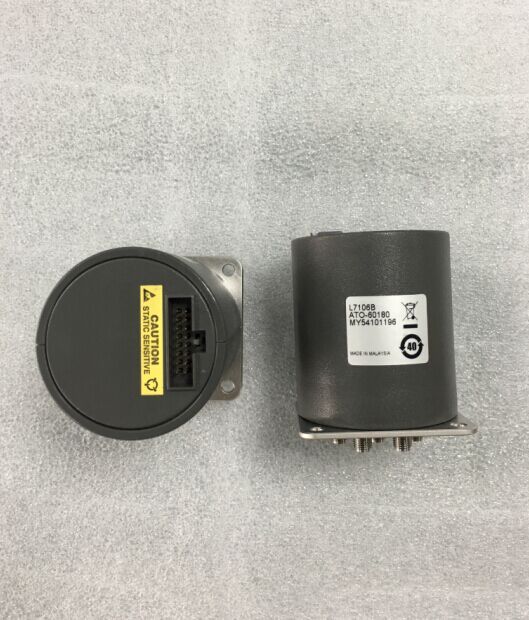

Name: single pole six throw RF coaxial switch 24V
Brand:KEYSIGHT
Model： L7106B
Frequency:DC-20HZ
Connector: SMA
-
-
-
-
-
-
-
