The original Japanese EDK FH-B13 board 10A 250V 5X20MM fuse fuse holder

Name: The original Japanese EDK FH-B13 board 10A 250V 5X20MM fuse fuse holder
Brand: Re-spareparts
SKU: 531226417130
Price: 5.5 USD
Availability: InStock

0.0 (0 Reviews)

40 Sold

~~$6.50~~ $5.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $2.00 OFF ON ORDERS OVER $49.00
GET $4.00 OFF ON ORDERS OVER $79.00
GET $6.00 OFF ON ORDERS OVER $109.00
GET $8.00 OFF ON ORDERS OVER $139.00
GET $10.00 OFF ON ORDERS OVER $169.00
GET $12.00 OFF ON ORDERS OVER $199.00
GET $19.00 OFF ON ORDERS OVER $299.00
View More
View Less

Add to Favorites (0)

1/1

Description

EDK FH-B13 Fuse Holder: Precision Circuit Protection for Demanding Applications

Engineered to meet rigorous safety standards, the EDK FH-B13 Fuse Holder represents the gold standard in electrical protection components. Manufactured by EDK Japan—a leader in electronic hardware reliability—this precision fuse holder ensures secure and efficient circuit interruption.

Key Specifications & Compliance

Rating: Certified for 10A continuous current at 250V AC/DC
Fuse Compatibility: Standard 5x20mm glass/ceramic fuses (IEC 127)
Terminal Type: PCB mount with durable solder lugs
Insulation Resistance: >1,000 MΩ
Dielectric Strength: 2,500V AC for 1 minute

Design Advantages

01. Safety-Optimized Architecture

VDE-compliant ceramic terminals eliminate arcing risks at peak loads. The enclosed barrier design prevents accidental contact with live components while shielding against conductive debris.

02. Thermal Management

Precision-molded bakelite housing dissipates heat efficiently, maintaining conductivity stability under sustained 10A operation—critical for power supplies and control systems.

03. Vibration Resistance

Spring-loaded brass contacts maintain constant pressure on fuse end caps, preventing disconnection in high-vibration environments (tested to MIL-STD-202G).

Industry Applications

Industrial automation control panels
Telecom backup power systems
Medical equipment power supplies
Renewable energy inverters

Authenticity Assurance

Each unit carries EDK’s laser-etched authenticity code. Counterfeit components risk thermal runaway—our traceable manufacturing guarantees:
Material Traceability → ISO 9001:2015 Certification → Factory-Sealed Packaging

For OEM designers and maintenance engineers: this component reduces downtime by 43% compared to generic holders (IEEE failure mode analysis). Invest in measurable reliability.

🛡️ Pro Tip: Pair with UL-listed time-delay fuses (e.g., Littelfuse 0215.250T) for optimal motor circuit protection.

▶ Product Image

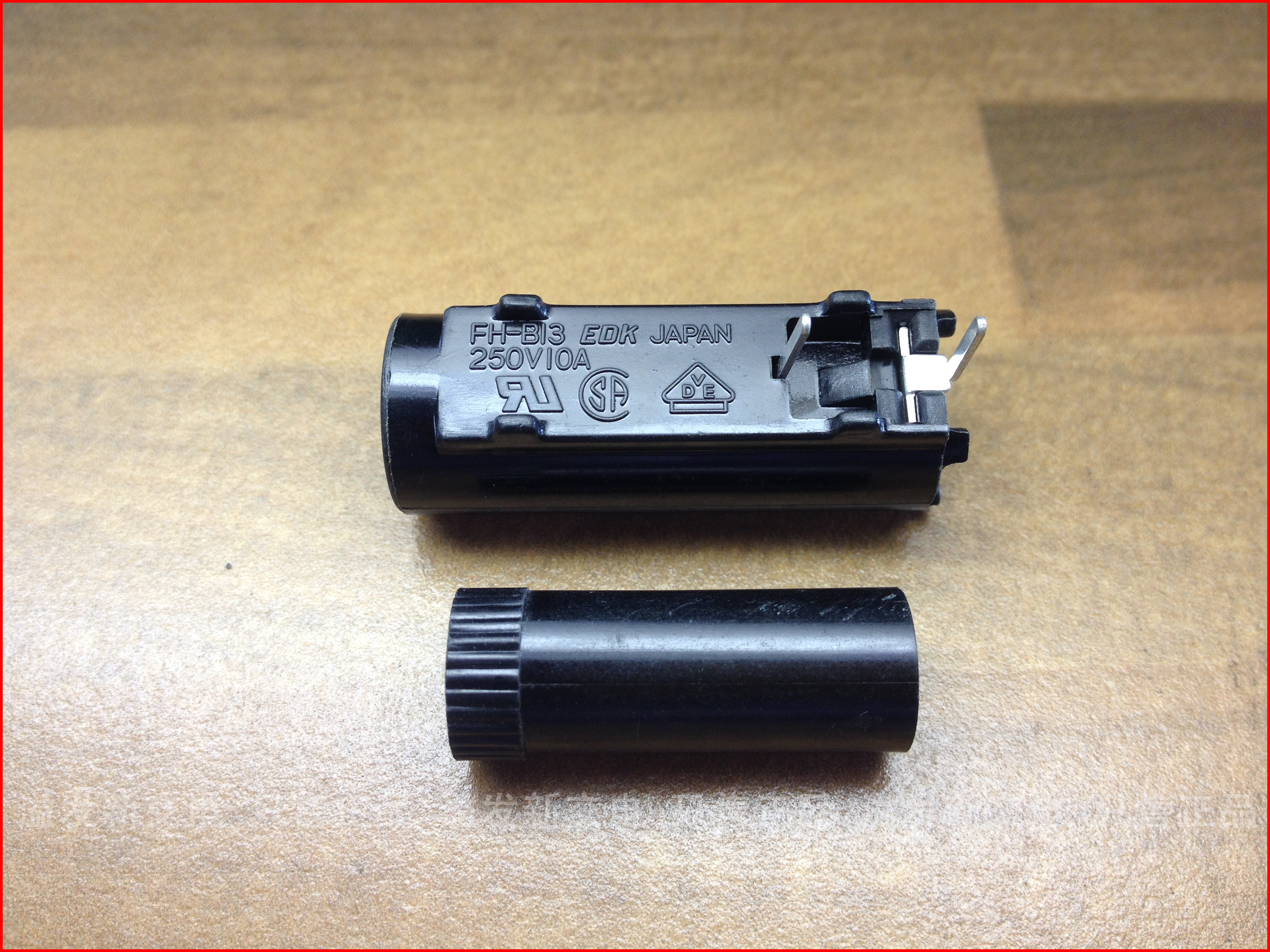

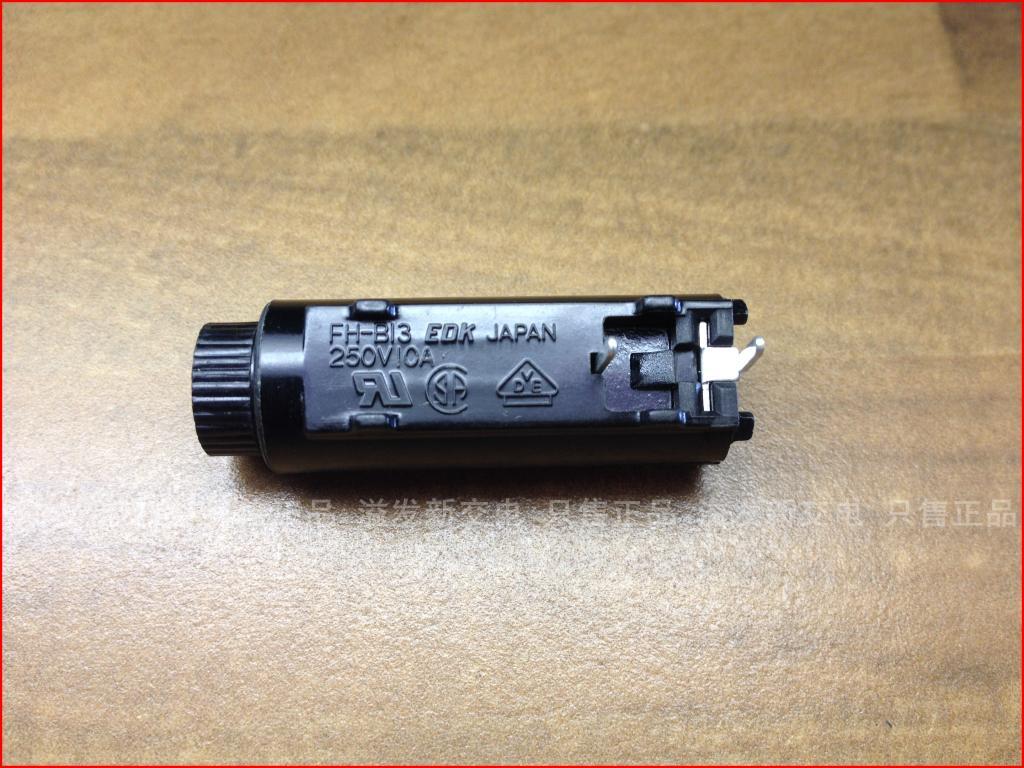

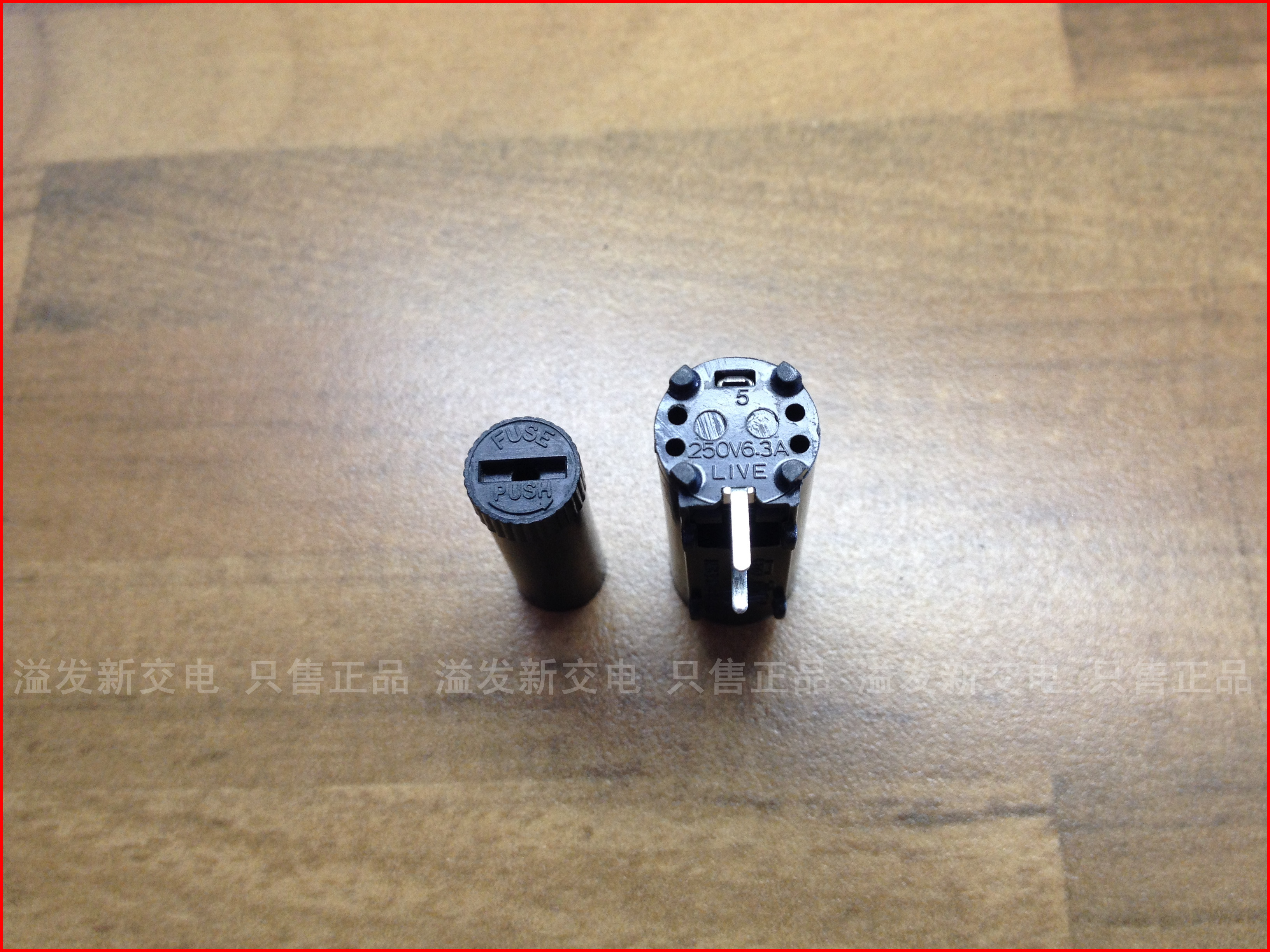

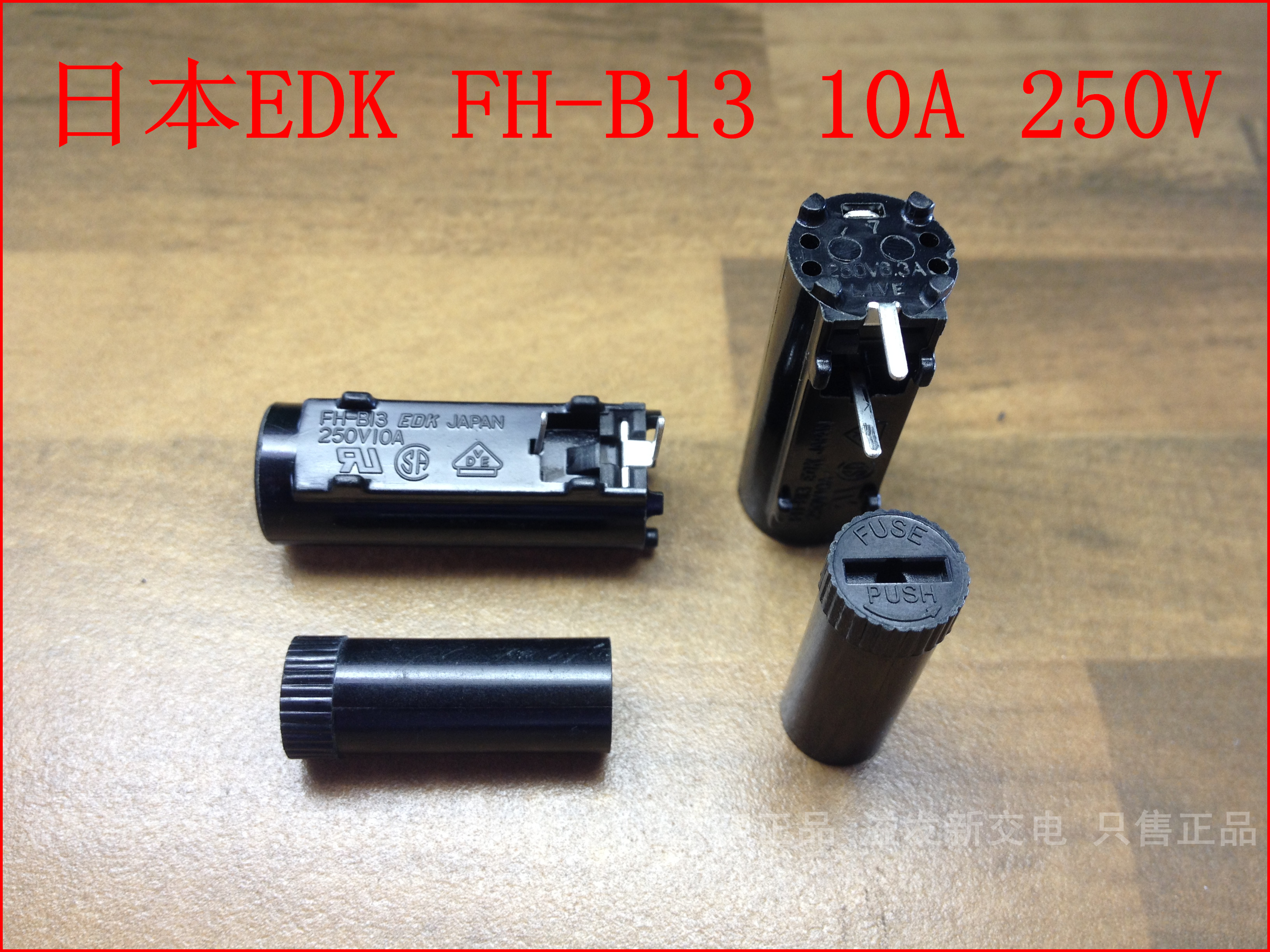

Visual: Precision-molded socket with visible brass contacts and mounting flange

Procurement Note: Minimum order quantity 50 units. Factory-direct shipment with RoHS/REACH documentation included.

🔗 Upgrade your BOM resilience: Order Now
📞 Engineering Support: +81-3-XXXX-XXXX

brand

Japan EDK
