| brand | HVGT |
|---|
|

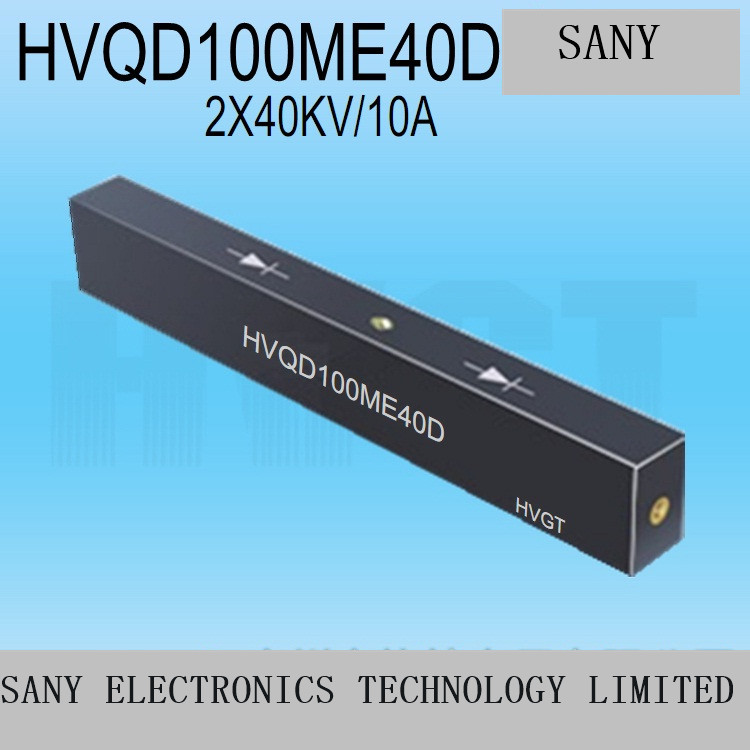

HVQD100ME40Dparameter table Datasheet: |
|||
|
Model Type |
HVQD100ME40D |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
2X40KV |
Forward average cuRRent IF(AV) |
10A |
|
Forward non repetitive surge current IFSM |
300A |
Positive peak voltage IF=10 (mA) VFM |
50V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
200uA |
Reverse recovery time Trr |
- |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
2000uA |
PN Junction capacitance CJ |
- |
|
Working temperature Tj |
-40~155C |
Storage temperature TSTG |
-40~155 C |
|
Notes Explain: |
|||
|
1Pipe body:600*130*40Among them, the heat sink is not high.25Outer heat sink86~92External heat sink size50*25*2Copper) TwoElectrode, electrode:3-M8 screw hole. 3Shape: the actual size of the finished product appearance and marked size will have error, but will not affect the installation and use. FourAnd heat: products above a double coolingSlice. |
|||
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
