| brand | HVGT |
|---|
|

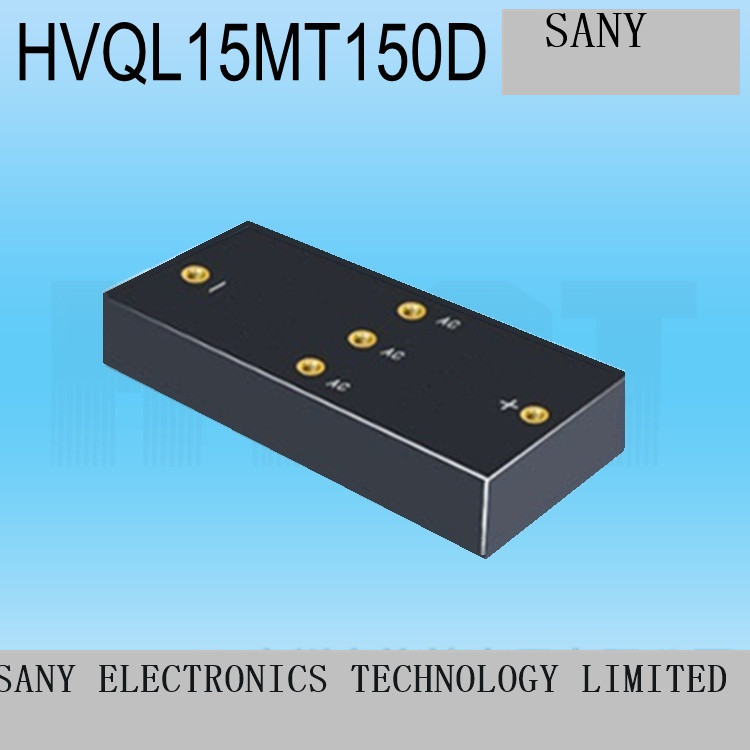

HVQL15MT150Dparameter table Datasheet: |
|||
|
Model Type |
HVQL15MT150D |
Manufacturer Manufacturer |
HVGT |
|
Reverse repetitive peak voltage VRRM |
15KV |
Forward average cuRRent IF(AV) |
1.5A |
|
Forward non repetitive surge current IFSM |
30A |
Positive peak voltage IF=10 (mA) VFM |
16V |
|
Reverse direct currentVR=VRRM(kV) IRTa=25 C |
5.0uA |
Reverse recovery time Trr |
- |
|
Reverse direct currentVR=VRRM(kV) IRToil=100 C |
50uA |
PN Junction capacitance CJ |
- |
|
Working temperature Tj |
-40~125C |
Storage temperature TSTG |
-40~125 C |
|
Outline dimension Size: Shape (mm Unit:) |
|||
|
|
|||
