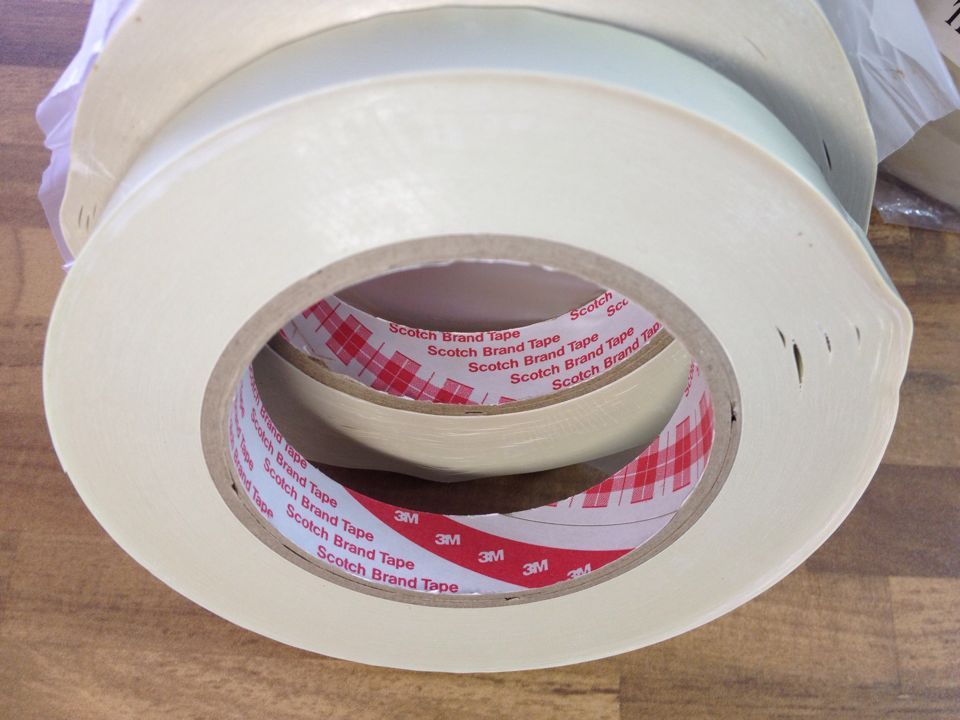

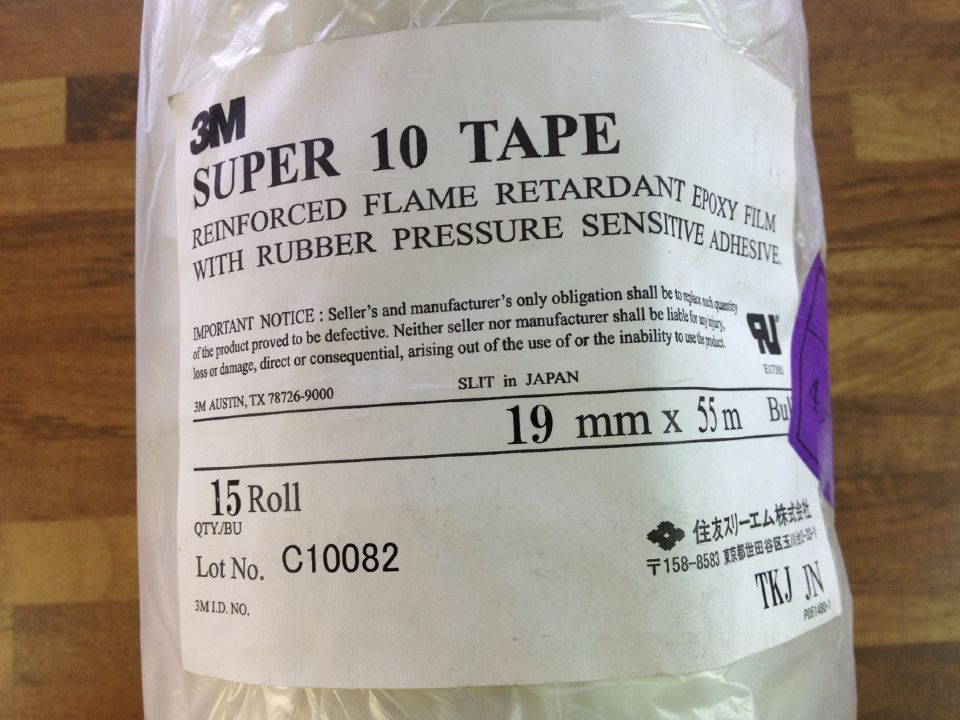

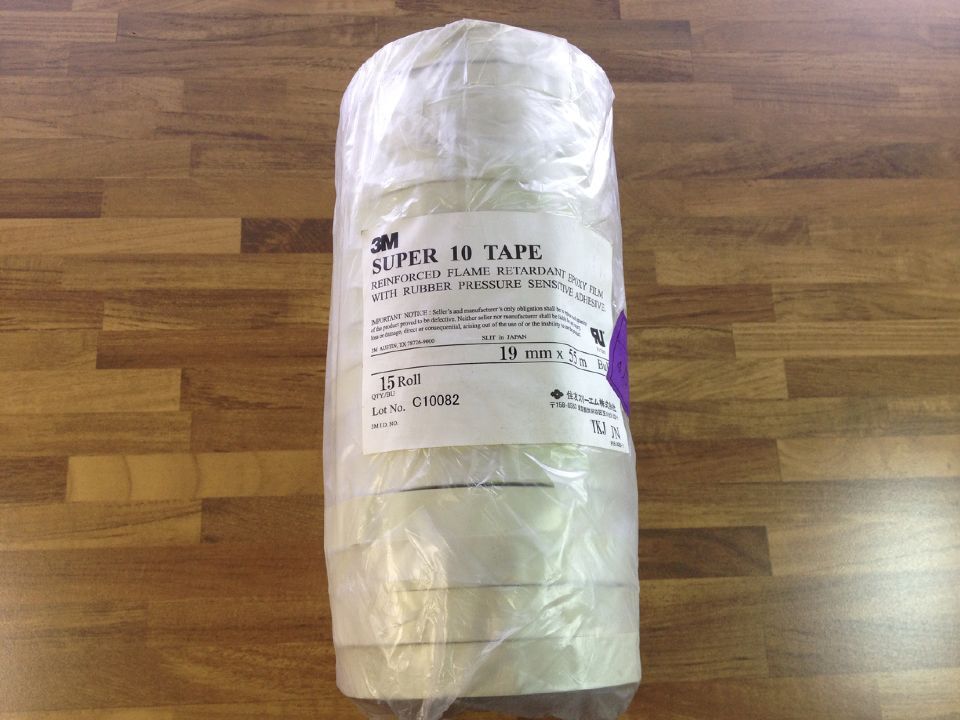

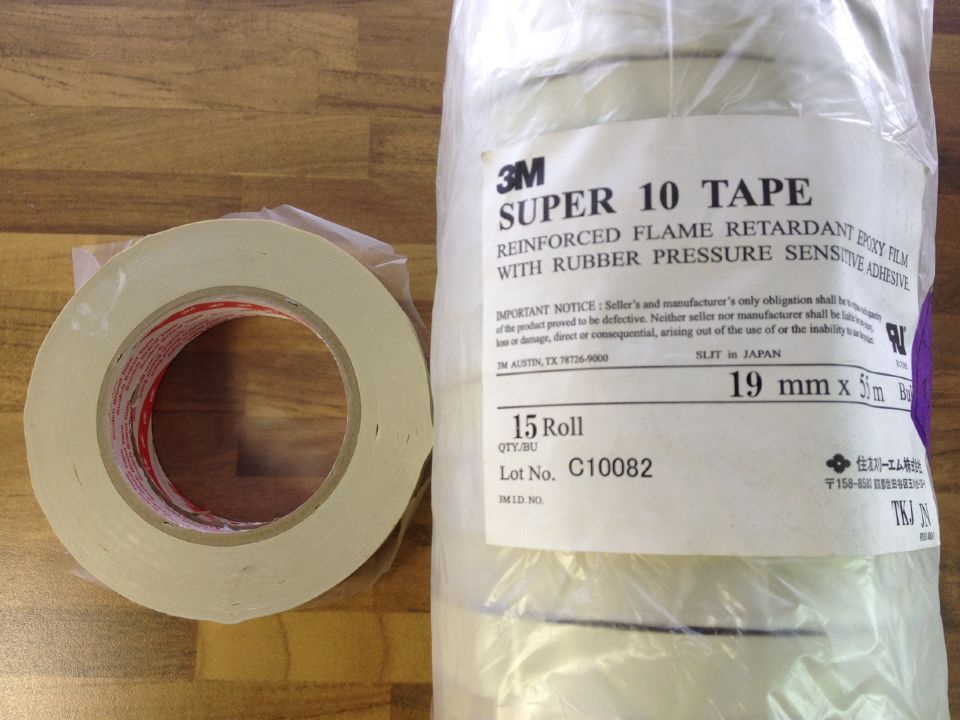

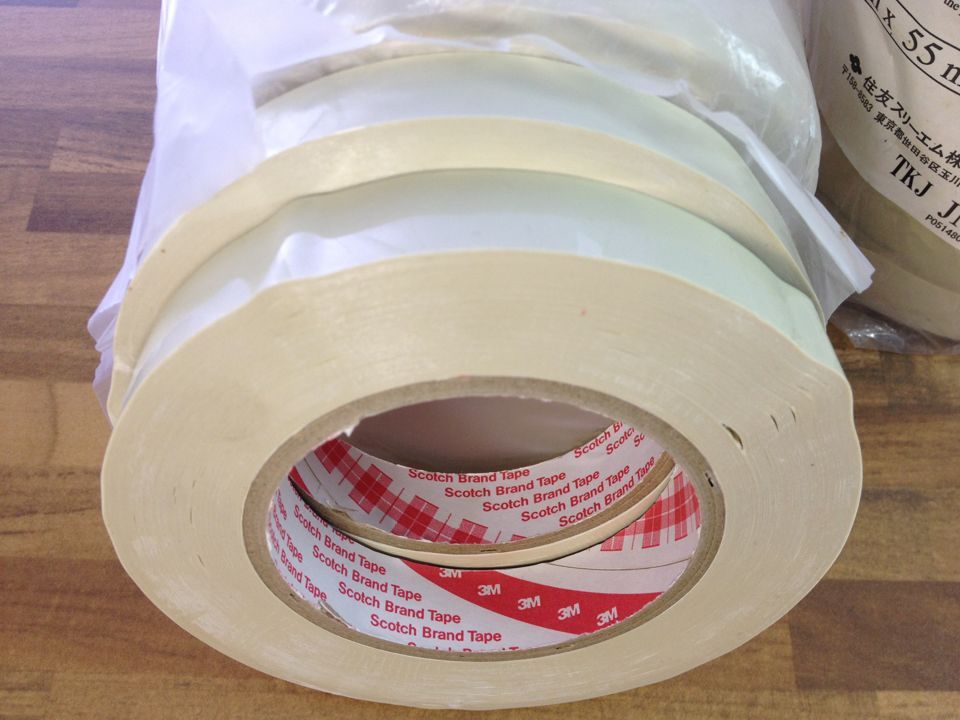

The United States 3M SUPER 10 epoxy thin film electrical tape 19MMX55M transformer relay original cloth

U.S.ASUPER10 3MEpoxy filmThe United States 3M SUPER 10 epoxy thin film electrical tape 19MMX55M transformer relay genuine original cloth

Electrical insulating tape

Product introduction:
Super 3M 10Epoxy film electrical insulation adhesive tape, is based on epoxy film as the substrate, coated with a sticky rubber adhesive. Tape is soft and well shaped, easy to operate. When the adhesive tape is applied, the electric property of the adhesive tape can be maintained after the extension of the stretching, and the adhesive tape has the properties of fire resistance.UL510Authentication。
Product features:
- High electric strength
- Excellent from form
- Flame retardant
- Temperature gradeF(155C)
- GetULCertification, file No.E17385
Scope of application
The product has long been working in155Temperature environment, can maintain excellent mechanical and electrical properties. Typical for the insulation of relays, transformers and coils, and the power distribution of the motor. And can be used for capacitors and wire binding.
technical parameter
- Substrate: epoxy film
- Adhesive: RubberRT(Rubber Thermosetting)
- Color: milky white
- Total thickness (base material+Adhesive):0.127mm
- Tensile strength:79N/10mm
- Long rate:120%
- Steel plate viscosity:4.9N/10mm
- Insulation resistance1*106megohms
- Breakdown voltage:8000 Volts
- Temperature grade:155C
- Electrical corrosion coefficient:1.0
- Flame retardant: PassUL510Flame retardant test
Remarks: the values listed are the results obtained in general, not as a product specification, test methodsD ASTM 1000,3MMeasurement method,UL510Authentication。
