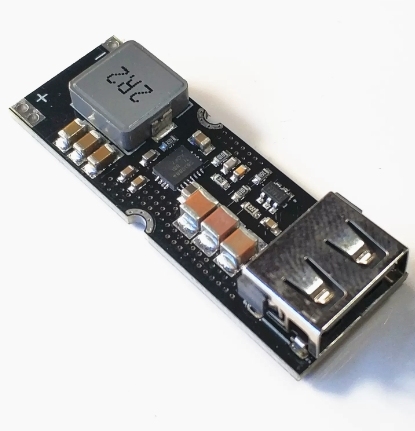

TPS61088 Boost Fast Charging Power Module 3.2V3.7V4.2V to 5V9V12V Mobile QC Fast Charging
Notes:
The module does not come with protection, remember not to connect the positive and negative terminals of the input terminals incorrectly.
The input voltage range is 2.8-4.5V, and 5V input is not allowed.
Lithium batteries must be equipped with a protective plate, with a continuous current of at least 5A.
This module can be powered by a single lithium battery or by multiple parallel connections.
Product Introduction:
Name: Single section lithium battery boost fast charging power module
Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8-4.5V, very suitable for use with 3.7V polymer lithium batteries
Output voltage: defaults to 5V, and after triggering fast charging, it is between 4.5V and 12V according to the protocol.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A. Adaptive output current.
Output power: Maximum 24W.
Supported protocols: QC2.0, QC3.0, Huawei FCP, DCP protocols
The highest efficiency can reach 93%, with a typical value of 90%.
Input wiring method: solder wire, try to use thick wire as much as possible
Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)
Module net weight: approximately 7 grams
